SKU: B45X55X45M

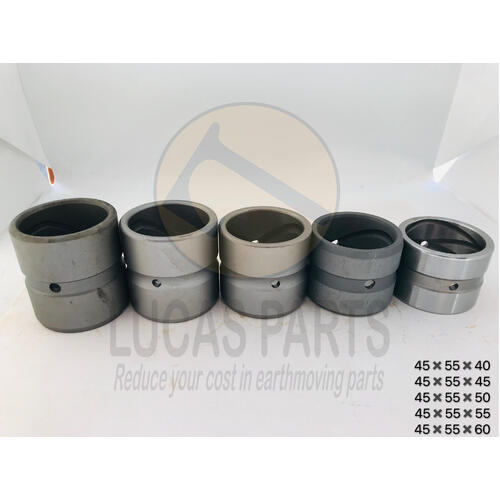

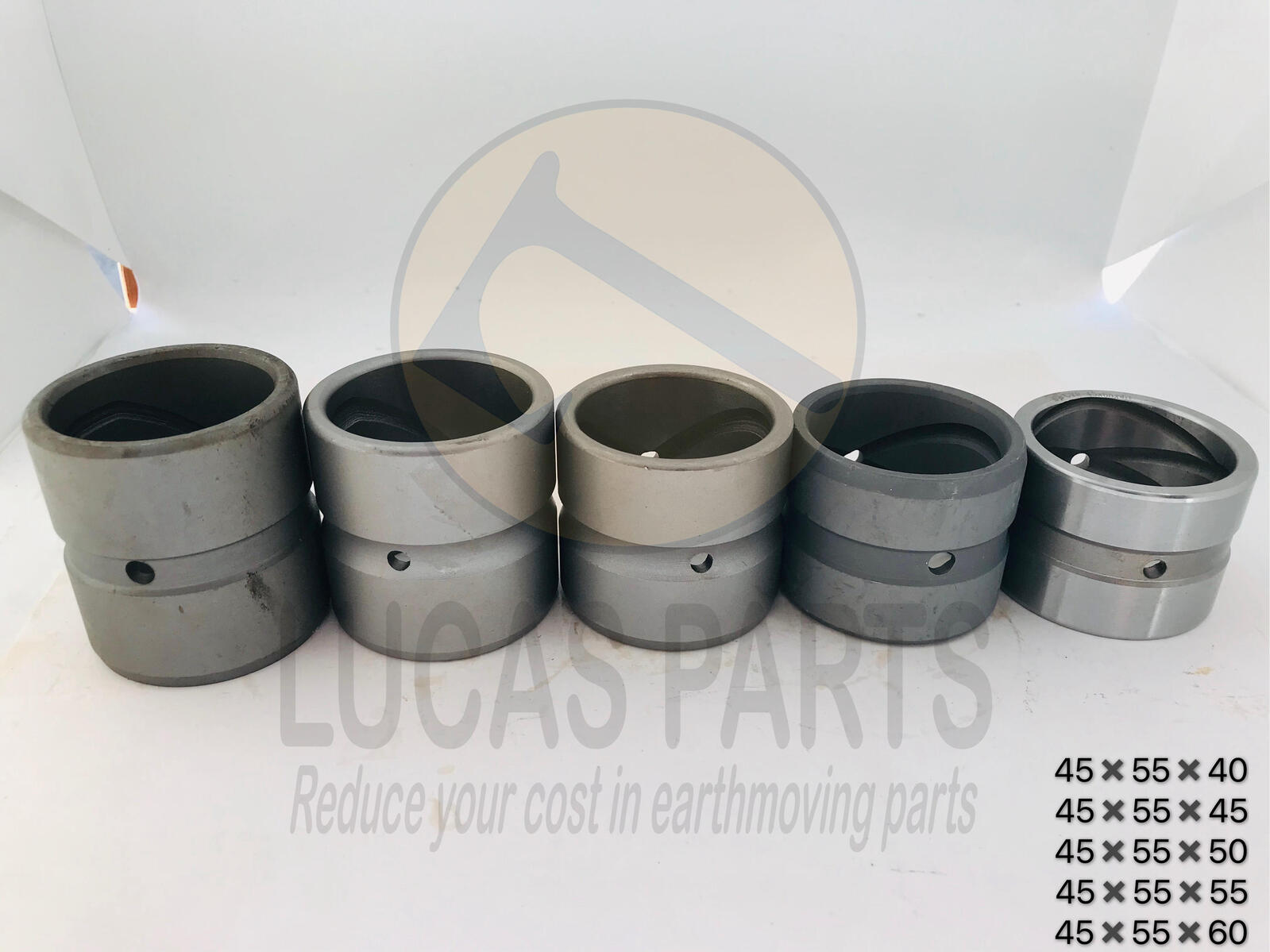

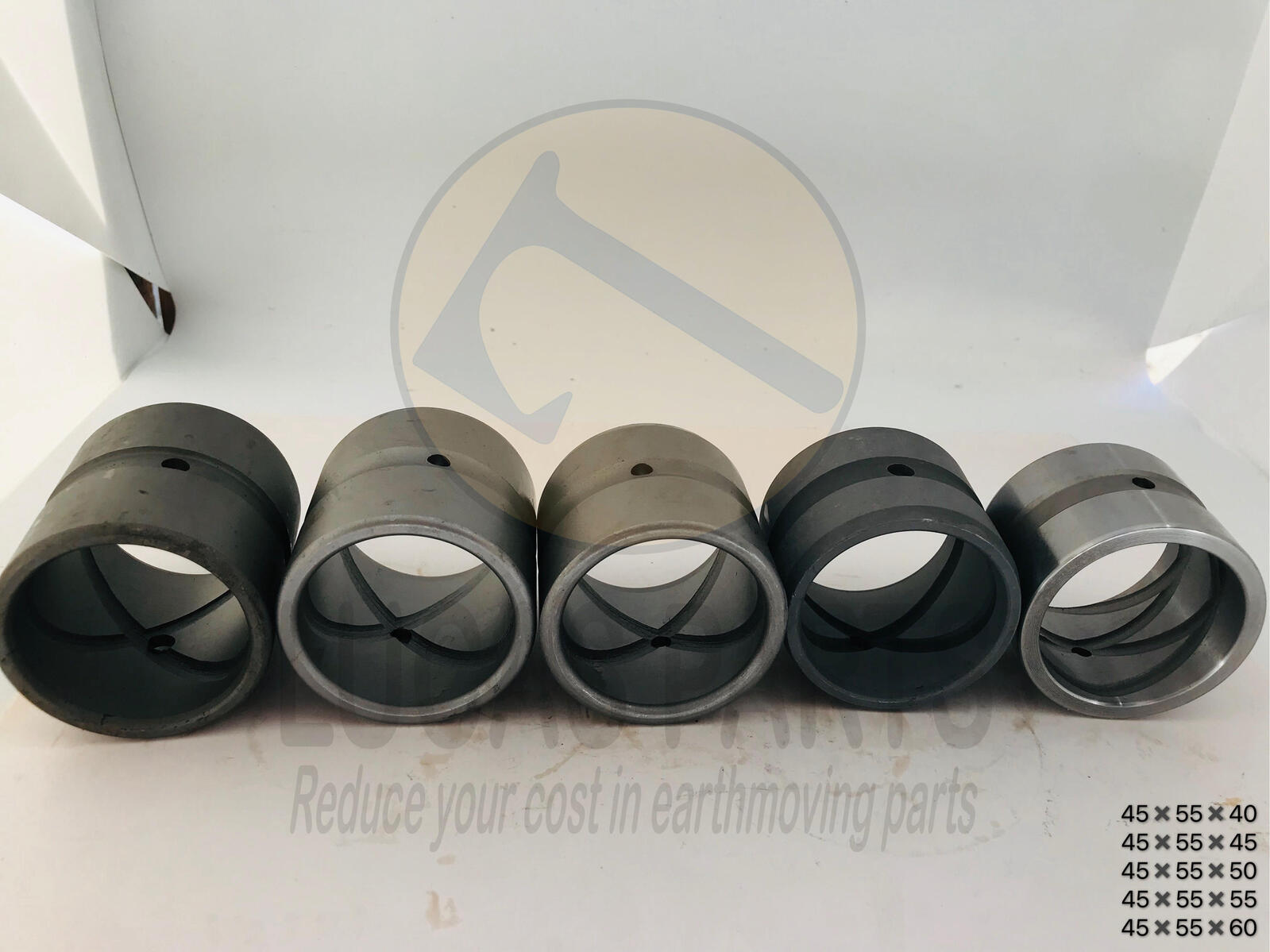

Bush 45x55x45mm IDxODxL CAT303 304 305 306 KX151 KX161 EC45 EC50 DH55 (P8 P9 P11) PC40 PN 20T-70-71870 SK40SR SK45SRX E50SR(P8) U35-3/4 (P1 Bracket))

$40.00



Description



I/D: 45mm
O/D: 55mm
Length: 45

Fits:

  • BobCat E45, E50, X335, X337, X341

  • Kubota KH151, KH191, KX151, KX161/-2/-3, KX191, U45, U50

  • Pel Job EB506

  • Volvo EC45, EC50, EC55, ECR58

  • Komatsu PC40 Part Number: 20T-70-71870
  • Caterpillar parts 303, 303.5, 304, 304.5, 305, 305.5, 306 Part Number  146-2304 1462304

PH12B01100P1 BUSHING,45mm ID x 55mm OD x 46.5mm W Kobelco parts SK45SR-2, SK45SRX, 50SR, SD40SR, SK55SRX, SK40SR, 50SR-5, 50SR-3

Pin-and-Bush-Location-Diagram







Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B45X55X45M
Brand Lucas Parts
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
