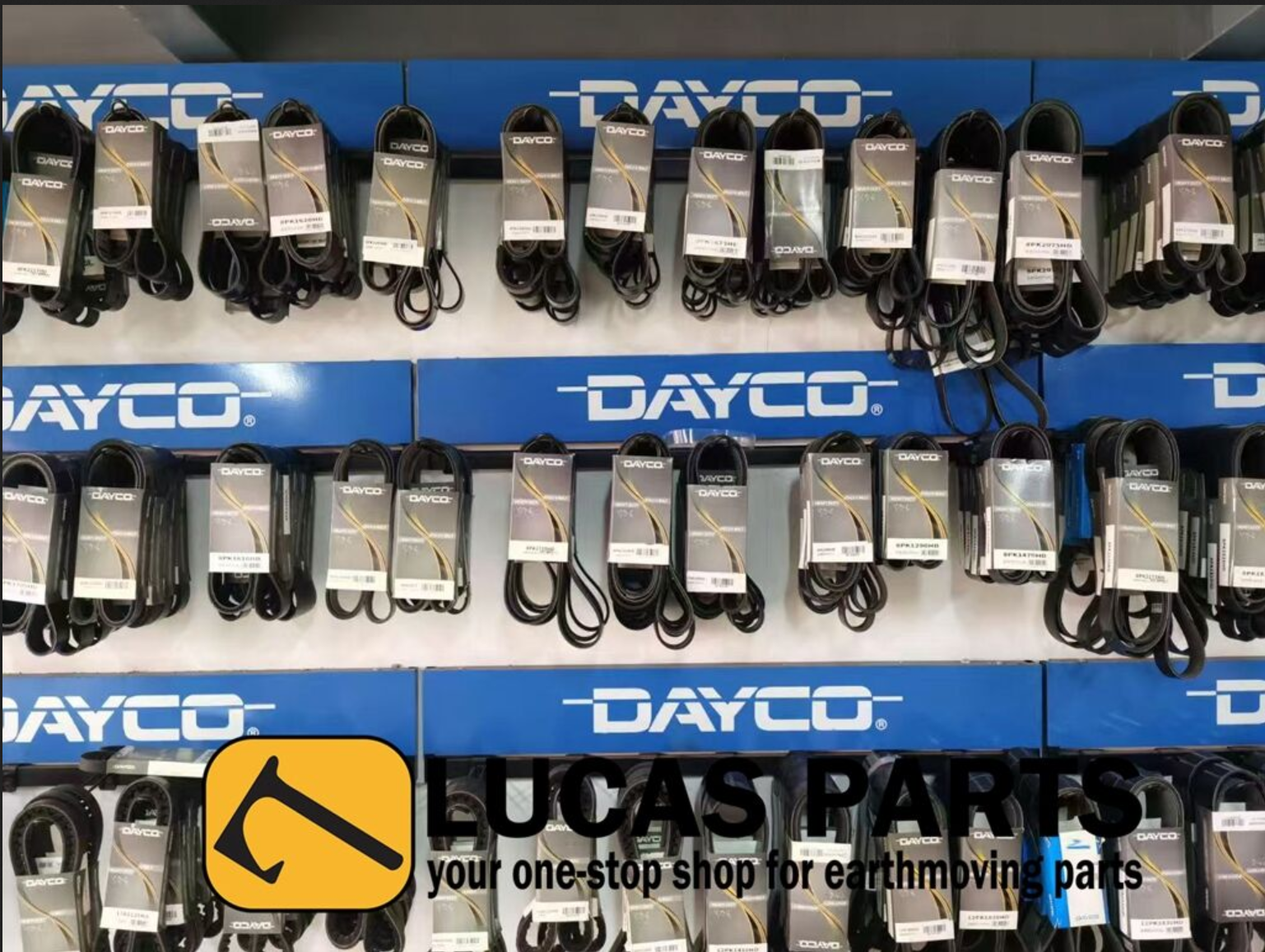

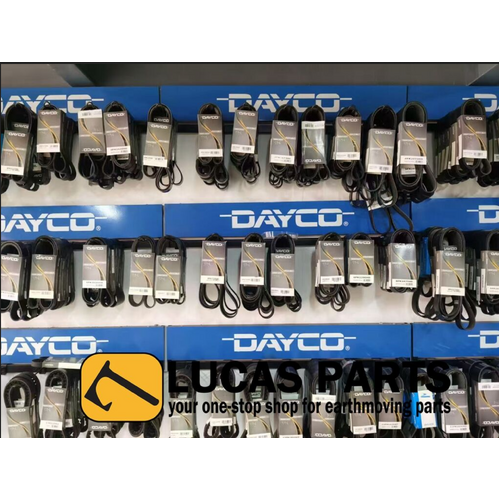

Belt - 13A0865C CAT325B DH80-7

An air con fan belt in a machine or excavator is a specific type of drive belt that powers the air conditioning compressor within the machine's engine compartment. It is a crucial component that transfers rotational energy from the engine's crankshaft to the A/C compressor, allowing the refrigerant to circulate and the cab's air conditioning system to produce cold air for the operator.

Detailed Breakdown

1. What It Is and Its Function

• Material: It's a heavy-duty rubber belt, reinforced with strong cords (like fiberglass, steel, or Kevlar) to handle the high stresses, vibrations, and environmental conditions (dust, mud, temperature extremes) of heavy equipment.

• Location: It's located in the engine bay, running between several pulleys. It is part of a larger serpentine belt system or, on older models, might be a separate, dedicated belt.

• Primary Job: Its sole purpose is to spin the clutch pulley on the A/C compressor when the operator turns the cab air conditioning on. This engagement makes the compressor pump refrigerant through the system.

2. The Two Main Types of Belt Systems

The configuration depends on the machine's design and age:

• Serpentine Belt (Common in Modern Machinery):

  • A single, long, multi-ribbed belt that snakes around all the engine accessories.

  • It powers the alternator, hydraulic pumps, coolant pump, A/C compressor, and other accessories.

  • In this system, the "air con fan belt" is not a separate belt; its function is integrated into this one serpentine belt.

• Dedicated V-Belt or Multi-Belt System (Older or Specific Models):

  • Some machines use multiple, individual belts for different components to simplify maintenance or due to design constraints.

  • There might be one belt for the primary hydraulic pump and another separate, dedicated belt solely for the air conditioning compressor.

  • It is this separate belt that is most accurately called the "air con fan belt."

3. Common Symptoms of a Failing A/C Belt

Given the harsh working environment, these belts are under significant stress. Failure symptoms include:

• Squealing or Chirping Noise: A loud, high-pitched squeal when the A/C is engaged is the most common sign. This is caused by a worn, glazed, or loose belt slipping on the pulley, often exacerbated by dust and debris.

• No Cold Air in the Cab: If the belt is completely broken or thrown off, the compressor won't spin, and the operator will get only warm or ambient air from the vents.

• Visible Cracks or Damage: During pre-operation inspections, visible cracks ("cracking"), fraying, material chunks missing, or signs of glazing (shiny, hard spots) indicate the belt needs immediate replacement.

• Burning Smell: A smell of burning rubber can be caused by the slipping belt creating excessive friction and heat.

4. Importance and Maintenance in Heavy Equipment

• Critical for Operator Comfort and Safety: In an excavator or machine, a functional A/C is not a luxury; it is vital for operator focus, health, and productivity, especially in extreme weather conditions. A failed A/C can lead to operator fatigue and heat stress.

• Part of Machine Reliability: While a dedicated A/C belt failure may not stop the machine's primary functions (like digging), a broken serpentine belt often will. It can lead to engine overheating (coolant pump stops), loss of hydraulic functions, and a dead battery (alternator stops), causing costly downtime on a job site.

• Replacement: These belts are high-priority wear items. They should be inspected daily during pre-start checks and replaced according to the manufacturer's strict service intervals, which are often based on engine hours. Replacement of tensioners and idler pulleys at the same time is highly recommended due to the demanding operating environment.

Summary of Key Points:

In short, for a machine or excavator, the "air con fan belt" is the critical link that allows the engine to run the cab's air conditioner, ensuring a safe and productive environment for the operator.
