SKU: B30X40X40M

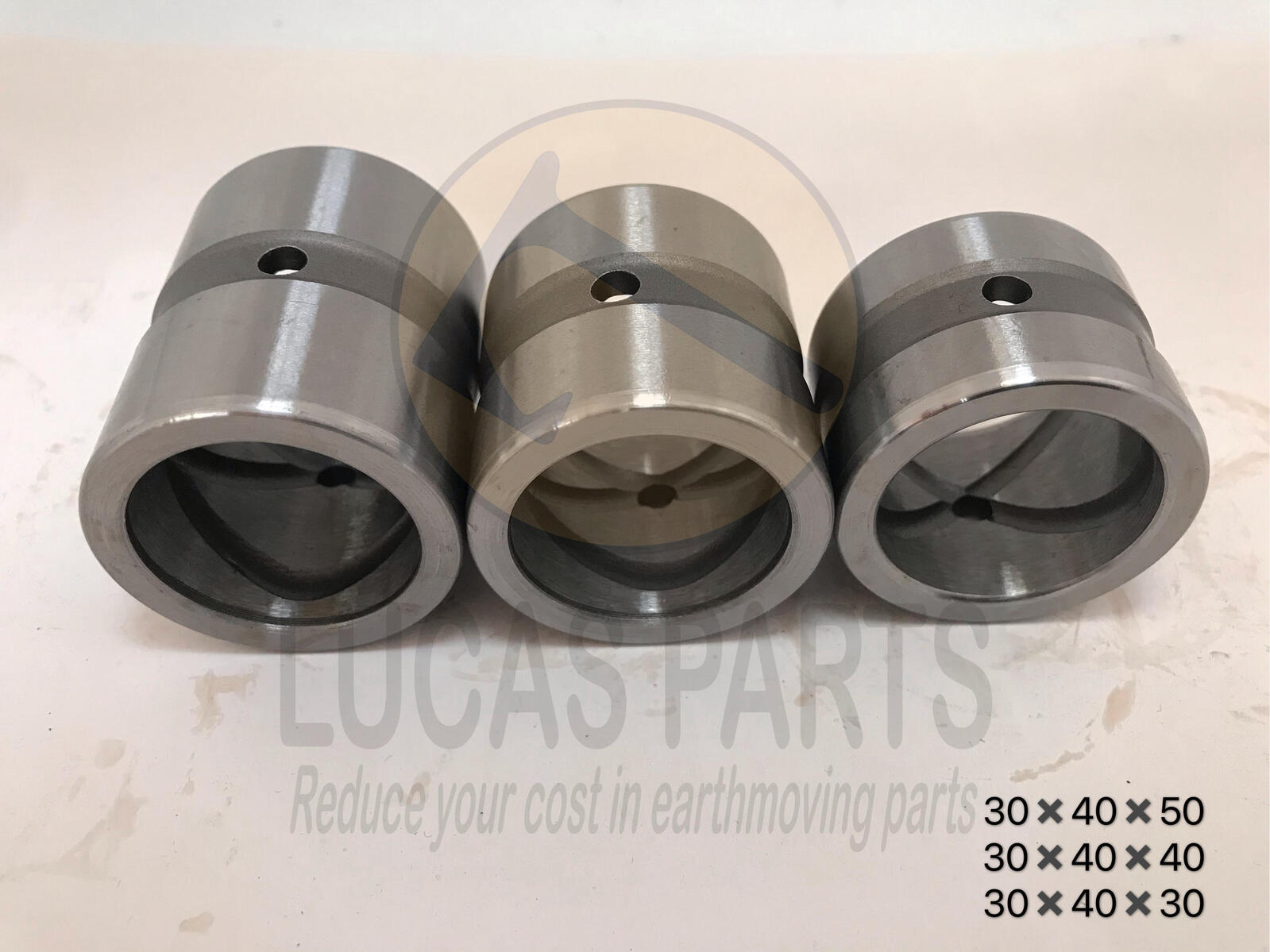

Bush 30*40*40mm ID*OD*L CX18 SK13SR

$33.00



Description

Fit Model:

  • YANMAR  VIO17 (P11)
  • CASE       CX18 (P5)
  • KOBELCO  SK13SR (P11)



/Pin-and-Bush-Location-Diagram















Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B30X40X40M
Brand Lucas Parts
Shipping Weight 0.1600kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.001500000m3
Unit Of Measure ea
