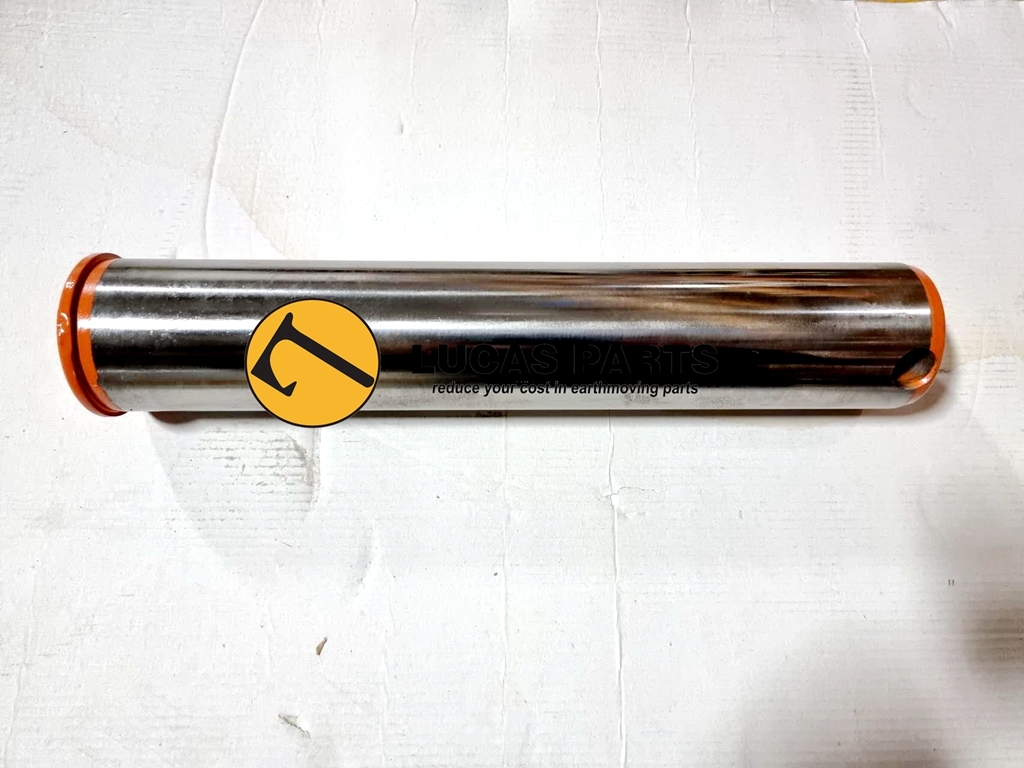

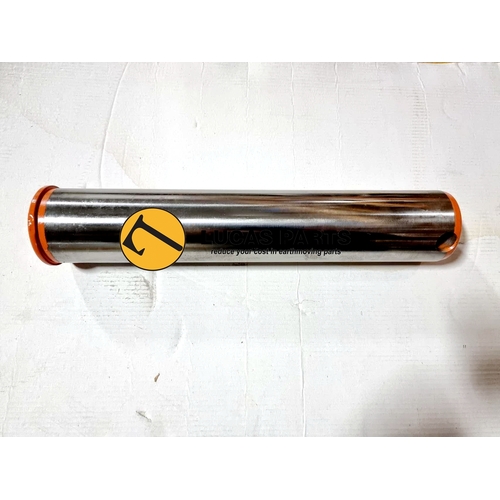

Excavator Pin 65x350mm ODxTL (P10) EX100 EX120 ZX110 ZX120 ZX125 ZX130 ZX135

Description

Compatible with the following equipment:

HITACHI

EX100, EX100-2, EX100-3, EX100-3C, EX100M, EX100M-2, EX100M-3, EX100W,
EX100WD, EX100WD-2, EX100WD-3, EX100WD-3C, EX120, EX120-2, EX120-3,
EX120-3C, EX120-5, EX120K-2, EX120K-3
ZX110, ZX110-3, ZX110-3-AMS, ZX110-3-HCME, ZX110-E, ZX110M, ZX110M-3, ZX110M-3-HCME,
ZX120, ZX120-3, ZX120-E, ZX120-HCMC,
ZX125US, ZX125US-E,
ZX130-3, ZX130-AMS, ZX130-HCME, ZX130H, ZX130K, ZX130K-3

Part Number: 3089103

Pin-and-Bush-Location-Diagram

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.

Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 397 Mpa; it is widely used in machinery parts.

SKU	P65X350SFNG1B
Brand	Lucas Parts
Shipping Weight	12.5000kg
Shipping Width	0.100m
Shipping Height	0.100m
Shipping Length	0.500m
Shipping Cubic	0.005000000m3
Unit Of Measure	ea
