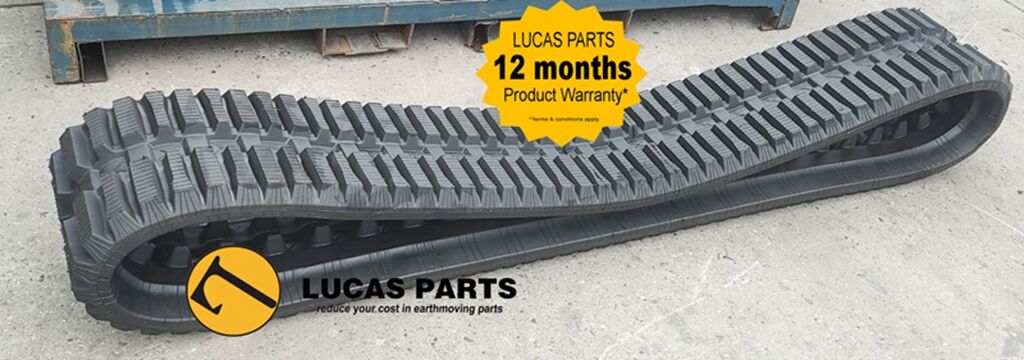

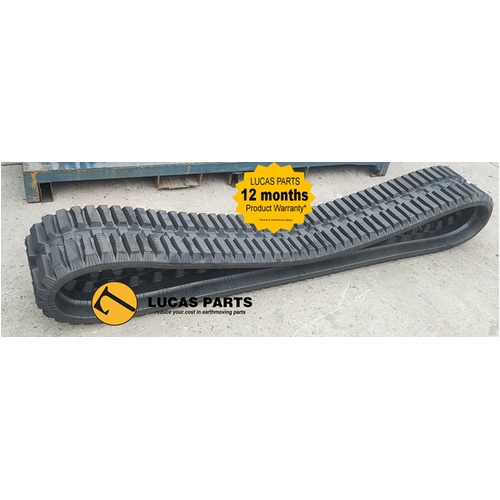

Rubber Track 457X101.6X51T ASV RC85 RC100 RT75 CAT287 287B PT100 PT100G

Description

Lucas Parts offer a premium quality, affordable, after-market rubber tracks for your excavators, with 12 months product warranty.

Our rubber tracks are built with high quality rubber and Continuous Steel Cord Technology to offer high performance and durability.

It is suitable for many machines that are described in the following list.

Technical Parameters:
1. Rubber track circumference = pitch * number of teeth
2. Steel wire diameter and quantity: 02.3*114土1 turn
3. The rubber track overall breaking strength≥5. 6kN*114=638. 4kN
4. Pitch size tolerance is (mm) 101.6土1.
5. Product thickness is (mm) 27土1
6. Rubber physical properties: grounding side, roller side

Hardness (shore A) 67土3。72土3。
Tensile strength (Mpa) ≥14 ≥14
7. There are trademark, model and serial number marks on the rubber track.

Width: 457 mm
Pitch: 101.6 mm
Links: 51 mm
Tread Pattern: Bi-Directional

Compatible with the following equipment:

ASV

RC85
RC100
RT75

CATERPILLAR

287
287B

TEREX

PT100
PT100G

CROSS REFERENCE (Original codes):
ASV 0703061

Caterpillar 420-9879, 4209879: 2208161

Terex 220-8161

Roller type: A2

Warranty

One Year full replacement Warranty on Skid Steer Loader Rubber Tracks.

We know our Skid Steer Loader Rubber Track's quality can last longer, and that is the reason we offer with a 12 months warranty.

If your Lucas Parts Skid Steer Rubber Track doesn't last for 12 months and the fault is due to a manufacturing defect then we will happily replace the track.

Specifications

Measure Your Rubber Tracks

Look at the track size stamped on the inside of your rubber track.
Measure the track if you cannot find the track size due to the track wears down.
Note down the width of track, the space between the lugs, pitch size and the number of lugs.
Please refer to the following diagram:

meaure your rubber tracks

SKU	SSLRT064610251T
Shipping Weight	155.0000kg
Shipping Width	1.200m
Shipping Height	0.800m
Shipping Length	1.800m
Shipping Cubic	1.728000000m3
Unit Of Measure	ea
