SKU: DTC10101L36L

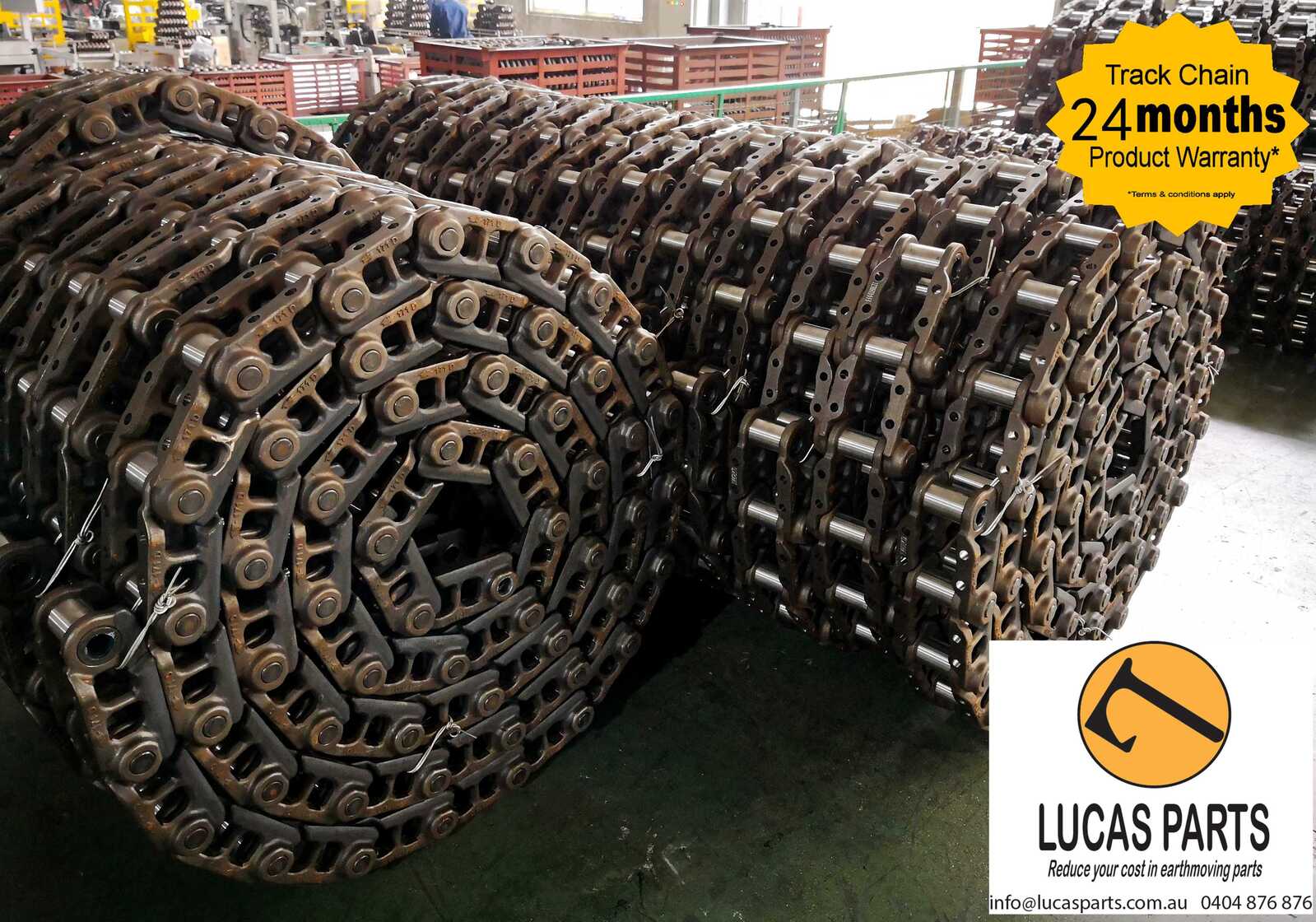

Track Chain 36L Lubricating Caterpillar D6D Loader 955L


In Stock


Compatible with the following equipment:


  • 955L 13X-1-UP    955L 57M-1-UP    955L 64J-10441-UP    955L 71J-6181-UP
  • 955L 85J-11004-UP    D6D 19B-1-UP    D6D 19X-767-UP    D6D 1Y-460-UP
  • D6D 30X-1-1225    D6D 30X-1226-UP    D6D 36C-1-UP    D6D 37C-1-UP
  • D6D 38C-1-UP    D6D 5X-1-779    D6D 5X-780-UP    D6D 74W-1 -1148
  • D6D 74W-1149-UP    D6D 9FK-1-UP    D6D DD 3X-1-818    D6D DD 3X-819-UP
  • D6D DD 7XF-1-UP    D6D DD 7YK-1-UP    D6D PS 20X-3042-UP    D6D PS 4X-1-4774
  • D6D PS 75W-1797-UP    D6F 5FR-1-UP

CROSS REFERENCE (Original codes):
BERCO    CR3309/36
BERCO    CR3309A/36
CATERPILLAR    117-1018
ITM    GZ1630C2M00036
VPI    VCR3309/36V

We are the track chain manufacturer selling direct to consumers.  Our parts are guaranteed to fit and are backed by the factory warranty in two years. Give you a peace of mind to buy if you worry about the price is too cheap.


We offer two types of Bulldozer track chains:

  • Greased Track Chain (Sealed and Greased)
  • Oil Lubricated Track Chain (Self-lubricating)

Lucas Parts' Greased Track Chains are a sealed and greased type construction. This kind of chain using a plastic seals between the link and the track pin with a synthetic grease lubrication. The pins are greased before pressing, therefore they are resistant to weather influences and corrosion. The minimal touch between the pin and bush increasing the life-time of premature wear. The seals prevent soil infiltration and keep the grease in the track links. Since the use of grease and seals in the chain, it extends its life more than 20% comparing to Sealed Chain.

Most of Bulldozers use the oil lubricated track chains, also known as SALT chains (Seals and Lubricated Type) due to the increased mobility and speed of tracking. Thus, there is more play between the pin and the bush than with greased track chains. The space between the pin and the bush is vacuumed and filled with oil after the pin is pressed. Premium quality seals are required for preventing excess wear to an oil lubricated track chain. Hence, the use of oil lubricated track chain extends its life more than 50% comparing with Sealed Chain.


SKU DTC10101L36L
Shipping Weight 800.0000kg
Shipping Width 1.200m
Shipping Height 0.700m
Shipping Length 1.200m
Shipping Cubic 1.008000000m3
Unit Of Measure ea
