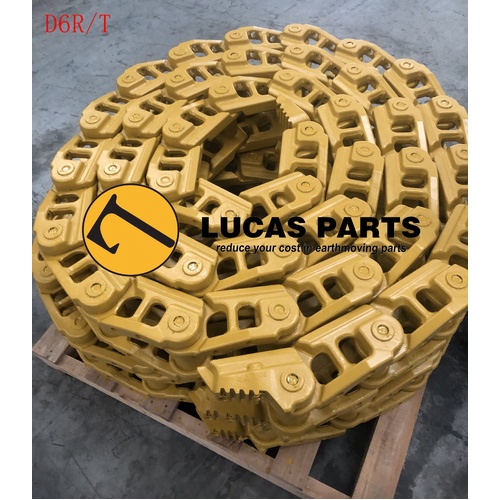

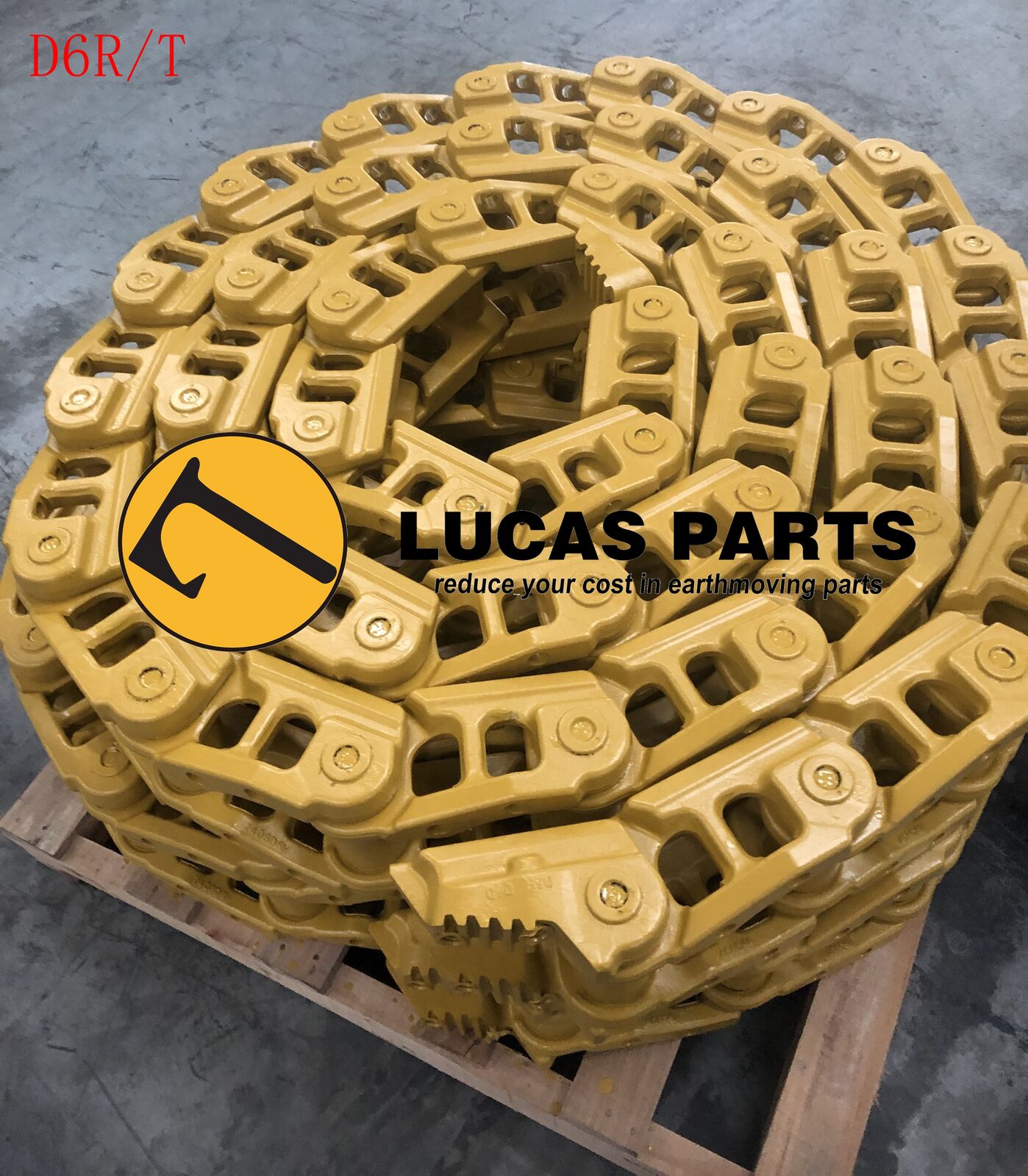

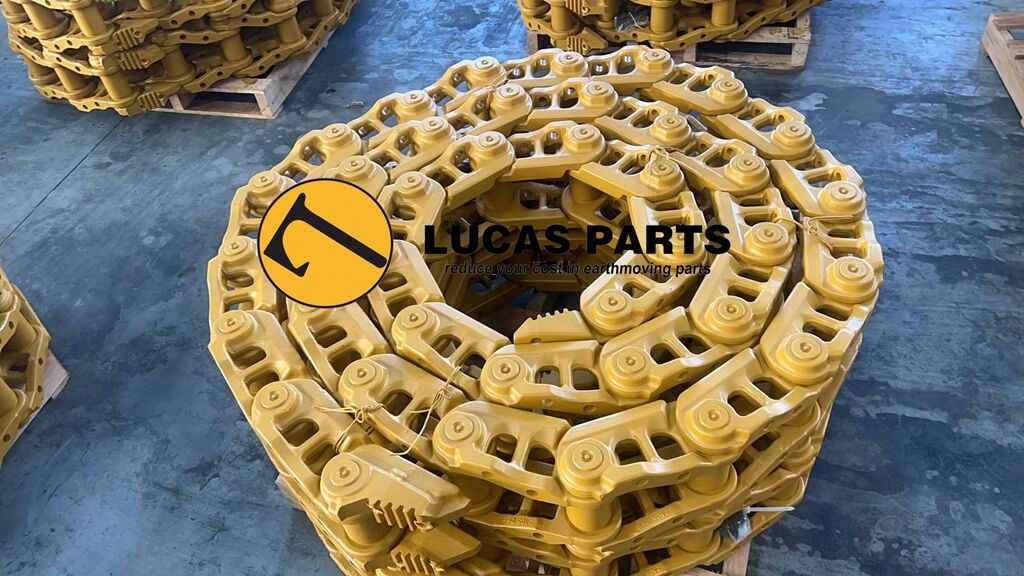

Track Chain Caterpillar D6H D6R 45L Oil Lubricated

Compatible with the following equipment:

CATERPILLAR

• D6H 2KD-5500-UP    D6H 3ED-5500-UP    D6H 3ZF-5954-UP    D6H 4RC-4000-UP
• D6H 4YF-5500-UP    D6H 6CF-4000-UP    D6R 2HM-1-UP    D6R 2YN-1-UP
• D6R 3ZN-1-UP    D6R 4FM-1-UP    D6R 5PR-1-UP    D6R 6FR-1-UP
• D6H LGP 1KD-5500-UP    D6H LGP 2TG-4093-UP    D6H LGP 4GG-5500-UP    D6H LGP 5HF-4276-UP
• D6H LGP 6FC-4092-UP    D6H LGP 8FC-5500-UP    D6R LGP 6GR-1-UP    D6R LGP 7AR-1-UP
• D6R LGP 8LN-1-UP    D6R LGP 8TM-1-UP    D6R LGP 9PN-1-UP

JOHN DEERE

• 850J LGP     850J LT     850J WLT     850K LGP
• 850K WLT

CROSS REFERENCE (Original codes):
BERCO    CR5534/39
CATERPILLAR    102-0761
CATERPILLAR    6I9668
ITM    G01060L0M00039
VPI    VCR5534/39V

BERCO    CR5534/45
CATERPILLAR    8E9037
ITM    G01060L0M00045
VPI    V8E9037V
VPI    VCR5534/45V

We are the track chain manufacturer selling direct to consumers.  Our parts are guaranteed to fit and are backed by the factory warranty in two years. Give you a peace of mind to buy if you worry about the price is too cheap.

We offer two types of Bulldozer track chains:

• Greased Track Chain (Sealed and Greased)
• Oil Lubricated Track Chain (Self-lubricating)

Lucas Parts' Greased Track Chains are a sealed and greased type construction. This kind of chain using a plastic seals between the link and the track pin with a synthetic grease lubrication. The pins are greased before pressing, therefore they are resistant to weather influences and corrosion. The minimal touch between the pin and bush increasing the life-time of premature wear. The seals prevent soil infiltration and keep the grease in the track links. Since the use of grease and seals in the chain, it extends its life more than 20% comparing to Sealed Chain.

Most of Bulldozers use the oil lubricated track chains, also known as SALT chains (Seals and Lubricated Type) due to the increased mobility and speed of tracking. Thus, there is more play between the pin and the bush than with greased track chains. The space between the pin and the bush is vacuumed and filled with oil after the pin is pressed. Premium quality seals are required for preventing excess wear to an oil lubricated track chain. Hence, the use of oil lubricated track chain extends its life more than 50% comparing with Sealed Chain.
