Arm Cylinder Assembly PC100-5 PC120-5

RRP $5,000.00 SAVE $100.00 (2%)

$4,900.00

VIP Unlock member-only pricing — Sign in or Join VIP Club

VIP Club Rewards. You could earn 4,900 Points. Detail.

VIP Club Rewards Program

Register now to become a member and enjoy exclusive member pricing at VIP Club.
As a VIP member, you earn 1 point for every $1 you spend. Every 100 points is worth $1 off any future order.

To see your reward points and use them as a discount, please sign in.

Join VIP Club Now

Sold Out Make an Enquiry

Description

Lucas Parts provides premium Arm Cylinder assemblies suitable for Komatsu excavators. The arm cylinder is an essential hydraulic component that controls the movement and digging power of the excavator arm, delivering smooth and efficient operation on construction, earthmoving, and mining jobs.

Manufactured for durability and performance, these hydraulic arm cylinders are built to withstand demanding working conditions while maintaining reliable lifting and digging strength. Ideal for repair, replacement, or machine maintenance, Lucas Parts offers dependable excavator hydraulic parts with Australia-wide support.

Features:

Heavy-duty construction
Reliable hydraulic performance
Designed for long service life
Suitable replacement for worn or damaged cylinders
Quality excavator parts from Lucas Parts

Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke

Pin-and-Bush-Location-Diagram

Lucas Parts provides premium Arm Cylinder assemblies suitable for Komatsu PC100-5 and PC120-5 excavators. The arm cylinder is an essential hydraulic component that controls the movement and digging power of the excavator arm, delivering smooth and efficient operation on construction, earthmoving, and mining jobs.

Suitable for:

Komatsu PC100-5
Komatsu PC120-5

Features:

Heavy-duty construction
Reliable hydraulic performance
Designed for long service life
Suitable replacement for worn or damaged cylinders
Quality excavator parts from Lucas Parts

Contact Lucas Parts today on 1300 987 300 for pricing and availability.

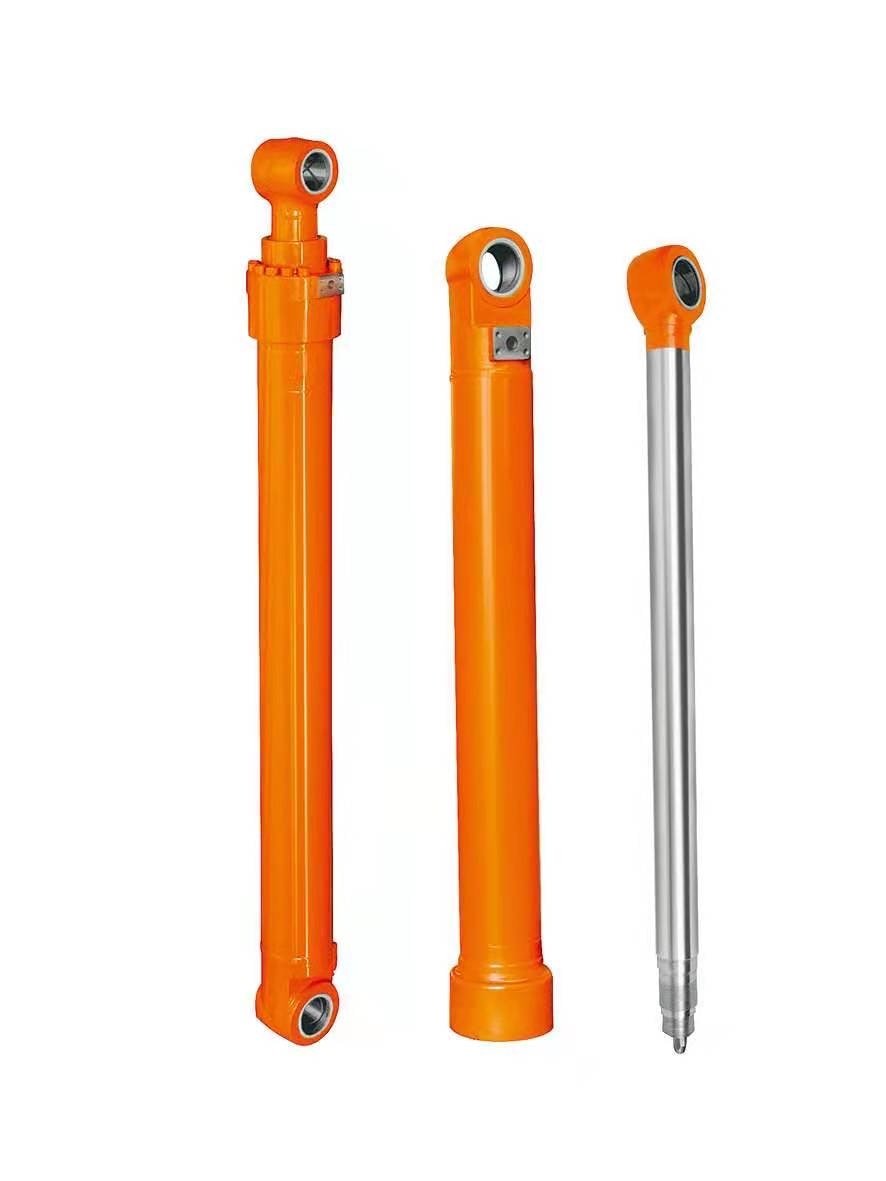

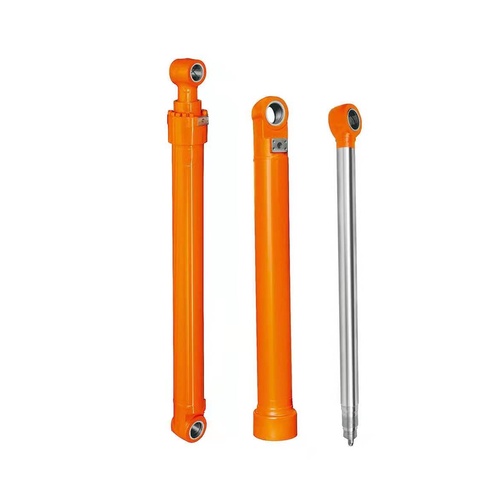

Arm / Stick Hydraulic Cylinder to Suit Komatsu PC100-5, PC120-5 Excavator

Bring back crisp, consistent stick travel on the Komatsu PC100-5, PC120-5 with a complete arm cylinder assembly from Lucas Parts. Supplied as a ready-to-fit unit — barrel, rod, piston, gland and seals — it's built to OEM specifications for a direct bolt-on replacement with no rebuilding required.

A worn or leaking arm cylinder shows up as slow or drifting stick movement, oil weeping at the gland, or a scored rod that keeps chewing through seals. Rather than losing days to a rebuild, swap in a complete new assembly and get the machine straight back to work. In the 12–15 tonne class, these machines handle road works, bulk trenching and site clearing — heavy cycles that wear seals and rods faster than most owners expect.

Key Details

Our SKU	HCAA10101
Part Type	Arm / Stick Hydraulic Cylinder Assembly
Suits	Komatsu PC100-5, PC120-5 Excavator
Supplied As	Complete assembly – barrel, rod, piston, gland & seals fitted
Condition	Brand New, Aftermarket (OEM Spec)
Warranty	Backed by Lucas Parts Quality Guarantee

Why Buy From Lucas Parts

Expert Support – Not sure about fitment? Our team knows excavators
Local Stock – Held in Melbourne, so there is no long overseas wait
Australia-Wide Shipping – Fast dispatch from our Melbourne warehouse
Trusted Supplier – Specialists in genuine & aftermarket parts for Hitachi, Kobelco, Komatsu, Volvo and more

Fitment Note: Before ordering, please compare your existing cylinder's closed length, stroke and pin diameters with the drawing above, or send us your machine serial number and we'll confirm it for you.

Specifications

SKU	HCAA10101
Brand	Komatsu
Shipping Weight	170.0000kg
Shipping Width	0.400m
Shipping Height	0.401m
Shipping Length	1.500m
Shipping Cubic	0.240600000m3
Unit Of Measure	ea
