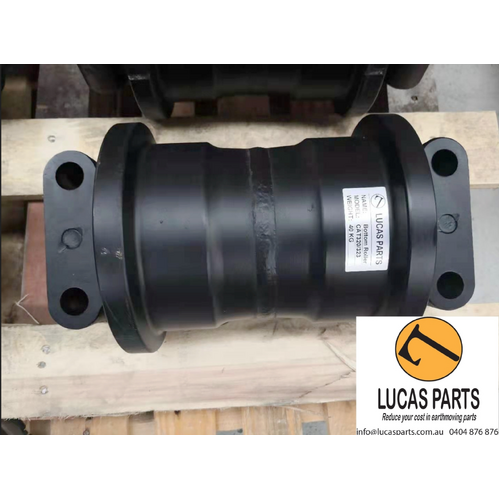

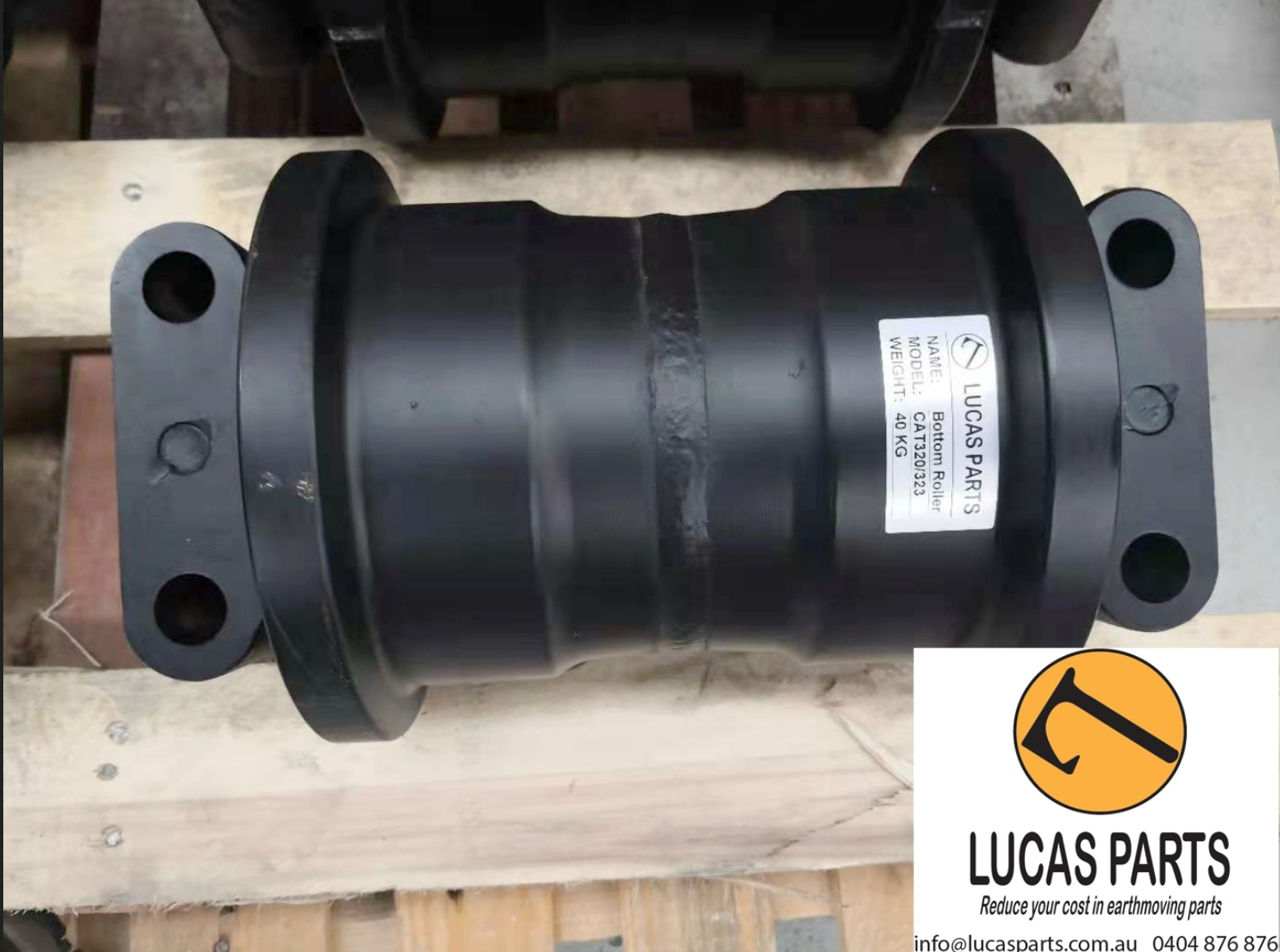

Bottom Roller CAT320 CAT323 E200B Liugong200-3 E318 E322 98*296*M20

Compatible with the following equipment:

CATERPILLAR

• 315 3ZM -1-UP    315 4YM -1-UP    315C ANF-1-UP    315L 6YM -1-UP
• 315L 7NM -1-UP    317 4MM -1-UP    317BL 6DZ -1-UP    317BLN 9WW -1-UP
• 317N 9SR -1-UP    318BL     318BN 7KZ -1-UP    318BN AEJ -1-UP
• 318C ADC-1-UP    318C AEJ-1-UP    318C BTG-1-UP    318C FAA-1-UP
• 319E KGL -1-UP    320 2DL -1-UP    320 3RK -1-UP    320 3XM -1-UP
• 320 7WK -1-UP    320 8LK -1-UP    320B 5BR -1-UP    320BL 6CR -1-UP
• 320BL LN 3YZ -1-UP    320BLL 6LS -1-UP    320BLL 9JS -1-UP    320C AKH -1-UP
• 320C AMC -1-UP    320C APA -1-UP    320C BCB -1-UP    320CL ALF -1-UP
• 320CL BDB -1-UP    320CL BGB -1-UP    320D A6F-1-UP    320D AZR-1-UP
• 320D BWZ-1-UP    320D BZP-1-UP    320D CXY-1-UP    320D DFT-1-UP
• 320D EBT-1-UP    320D FAL-1-UP    320D GKS-1-UP    320D JFGZ-1-UP
• 320D JFZ-1-UP    320D JPD-1-UP    320D KLM-1-UP    320D MCH-1-UP
• 320D MZD-1-UP    320D SNS-1-UP    320DL A8F-1-UP    320DL A9F-1-UP
• 320DL BWP-1-UP    320DL DHK-1-UP    320DL FNA-1-UP    320DL FXF-1-UP
• 320DL GDP-1-UP    320DL KGF-1-UP    320DL KZF-1-UP    320DL MDE-1-UP
• 320DL MGG-1-UP    320DL PDS-1-UP    320DL PHX-1-UP    320DL SPN-1-UP
• 320DL TDH-1-UP    320DL WJN-1-UP    320L 1KL -1-UP    320L 1TL -1-UP
• 320L 3XK -1-UP    320L 4BK -1-UP    320L 9KK -1-UP    320N 1XM -1-UP
• 320N 9WG -1-UP    321C DAX-1-UP    321C KBB-1-UP    321C KCR-1-UP
• 321C MCF-1-UP    321C LC     323DL BYM-1-UP    323DL JLG-1-UP
• 323DL NDE-1-UP    323DL PBM-1-UP    323DL SDC-1-UP    323DLN CYD-1-UP
• 323DLN RAC-1-UP    E200B 6KF1-UP    EL200B 7DF -1-UP


INGERSOLL RAND

• DM30 UP9416 TO 9419


CROSS REFERENCE (Original codes):
BERCO    CR5109
BERCO    CR5572
BERCO    CR6676
CATERPILLAR    117-5045
CATERPILLAR    163-4143
CATERPILLAR    1R8669
CATERPILLAR    209-3386
CATERPILLAR    286-9823
CATERPILLAR    348-1867
CATERPILLAR    8E5034
CATERPILLAR    964289
CATERPILLAR    965893
CATERPILLAR    991109
CATERPILLAR    993597
INGERSOLL RAND    57704900
INGERSOLL RAND    993597
ITM    A7820000M00
ITM    A7820001M00
ITM    A78200B0M00
MITSUBISHI    D34310103
VPI    VCR5109V



Lucas Parts Bottom Roller/Track Rollers are manufactured in highest quality hardened steel with the heavy duty duo-cone seals, and advanced heat treatment processes to increase robustness, guarantee high resistance and optimize wear performance in any environment. This maintenance free Bottom Roller shaft is induction hardened with high surface finishing quality, in order to resist a heavy radial and axial loads and in the meantime to make sure an adequate internal oil lubrication in the toughest conditions.

Lucas Parts undercarriage product serves both the heavy equipment and industrial markets with rubber track machinery such as Excavators,Bulldozer,  Mini Excavators, Compact Track Loaders, Mini Skid Steers, and Mini Dozers. We offer one of the most dependable complete range of Rollers, Drive Sprockets, Idler Wheels, Track Guide,Rubber Track, Steel Chain in the industry.

All undercarriage components are backed by a one year product warranty.

If you can't see what you are looking for, please get in touch with us, as we are constantly adding to our product range.
