SKU: B80X95X80M

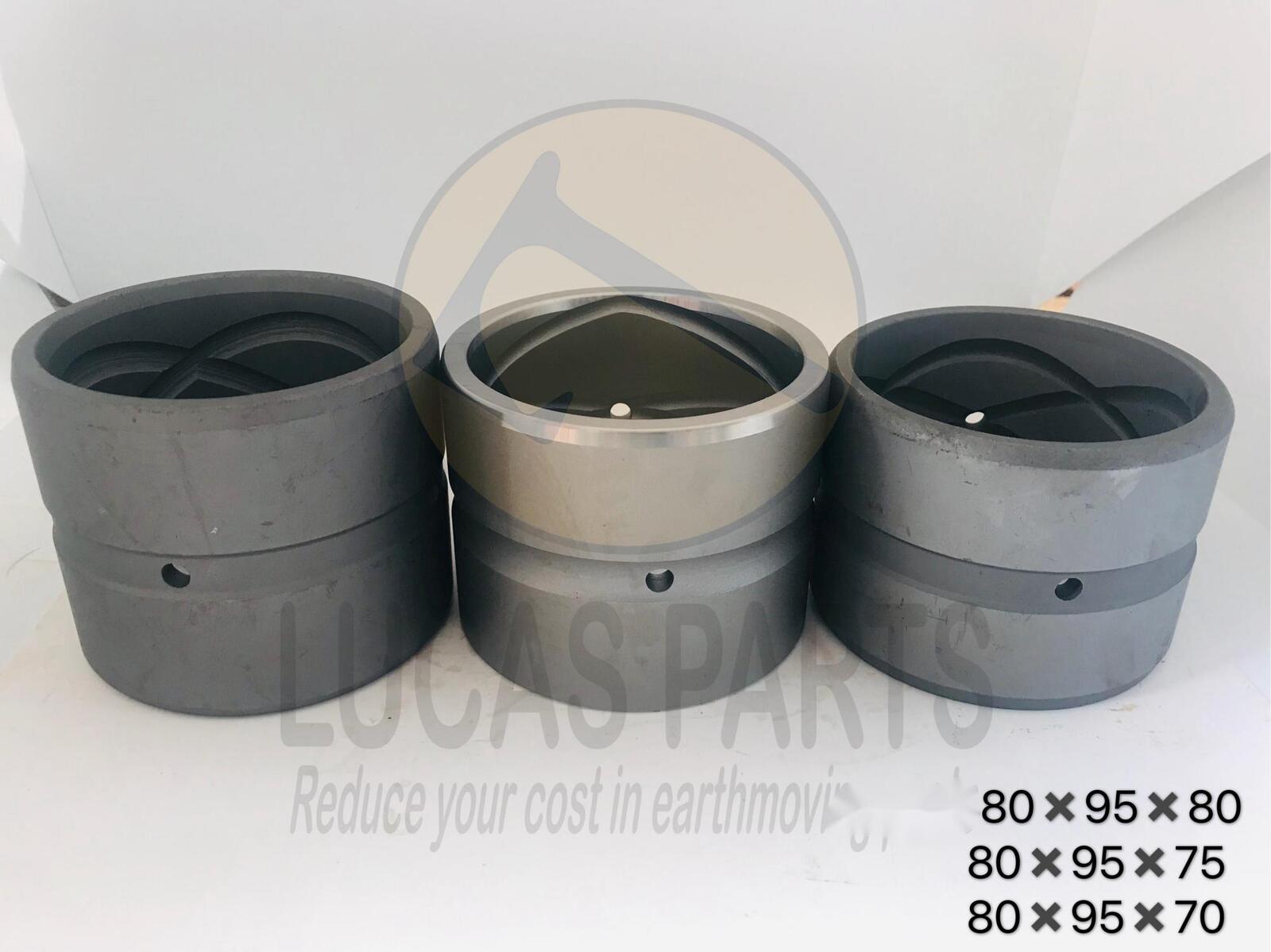

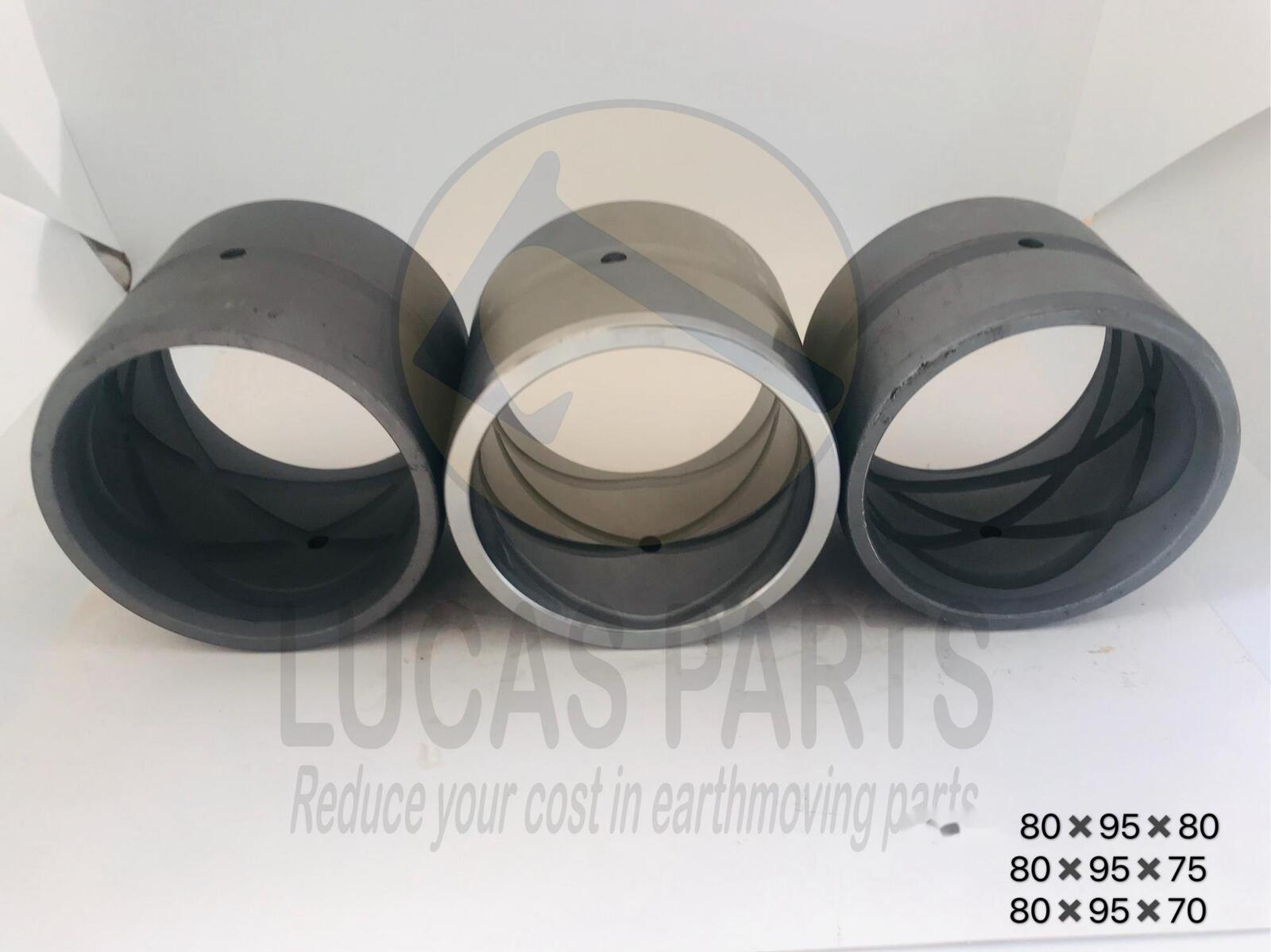

Bush 80x95x80mm IDxODxL PC200-7 PC240-8 EX200 CAT311 312 314 318 315 320 PN 2402913 CX210 CX235C SH210-5 (P11) PN KRV10930PN

PC220-7 (P8 P11)

$83.00



Description



CATERPILLAR: Postion, Part Number:240-2913, 2402913

  • 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L,
  • 312E, 313D, 313D2, 313D2 LGP, 314D CR, 314D LCR,
  • 314E CR, 314E LCR, 315C, 315D L, 316E L, 318C,
  • 318D L, 318D2 L, 318E L, 319C, 319D, 319D L, 319D LN,

CASE (P11)

  • CX210 CX235C

SUMITOMO (P11)

  • SH210-5 SH210LC-5

Part Number: KRV10930

Pin-and-Bush-Location-Diagram

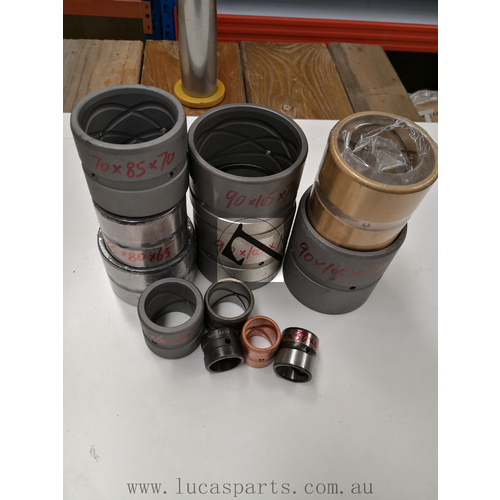

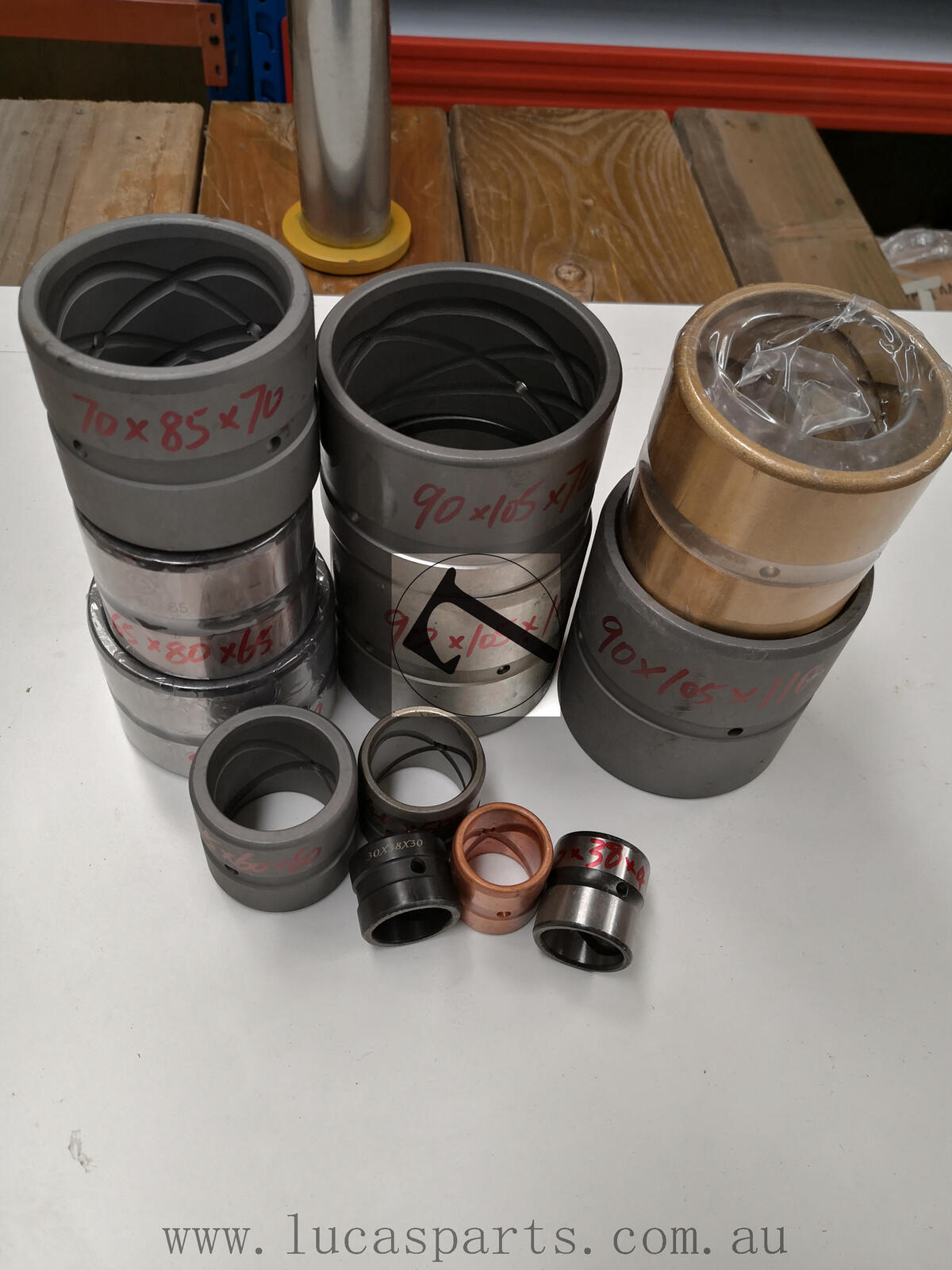

Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B80X95X80M
Brand Lucas Parts
Shipping Weight 2.0000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
