SKU: FDU05101G

Final Drive PC40-7 PC50MR PC55MR IHI40JX EC45 DH55 SK40SR SK50 CAT305.5 PC45R-8 Genuine Parts

(12) 230mm

RRP $5,800.00 SAVE $1,650.00 (28%)
$4,150.00



Description

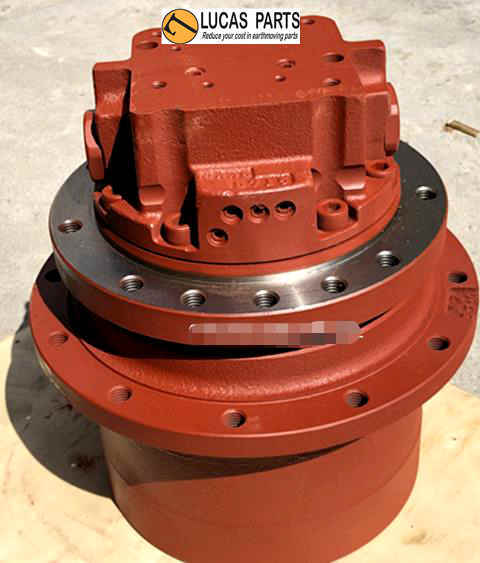

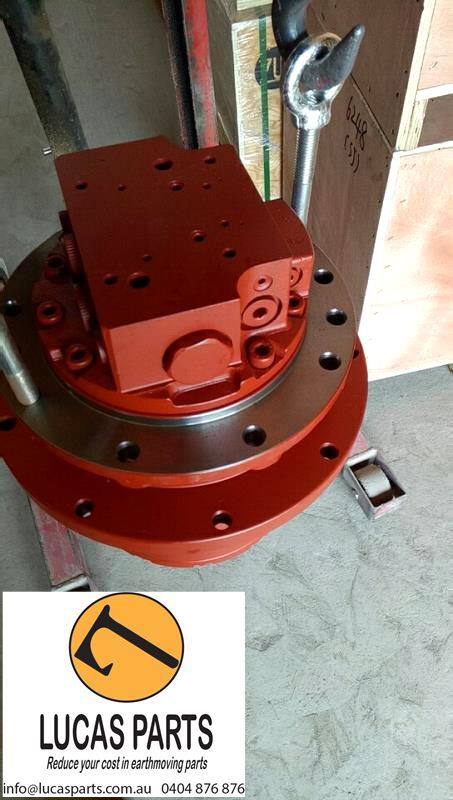

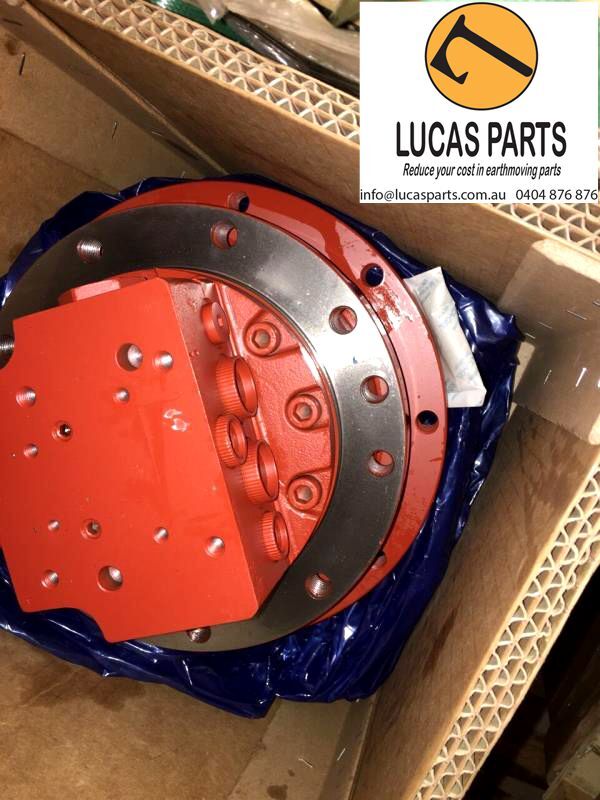

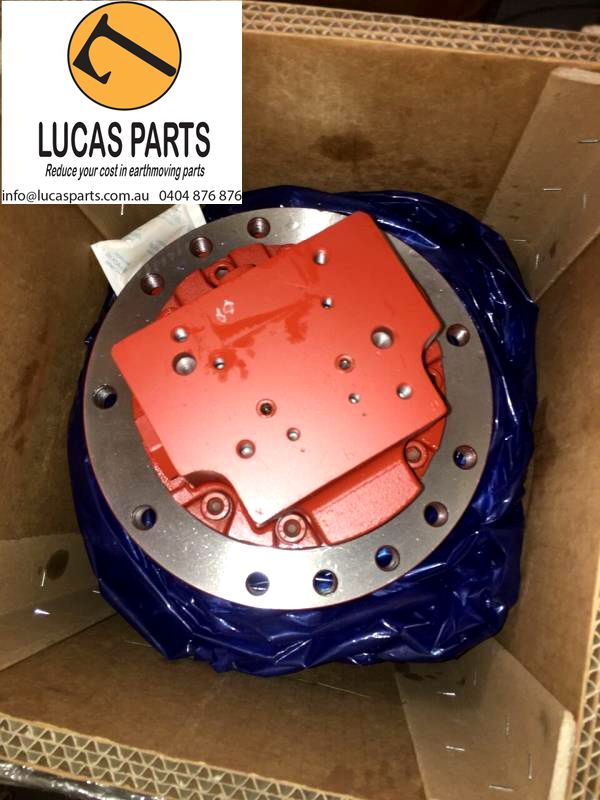

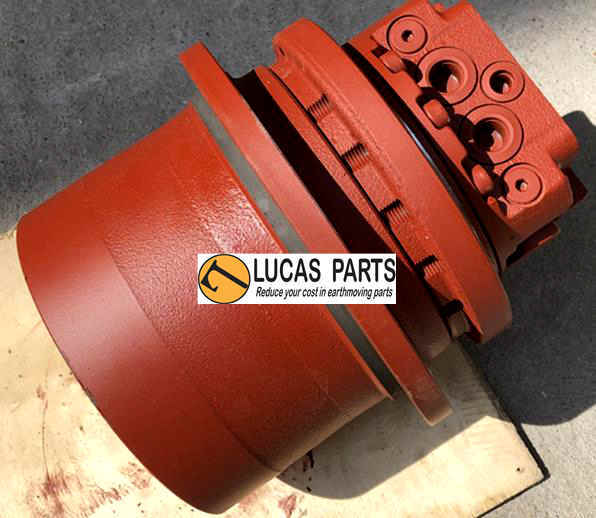

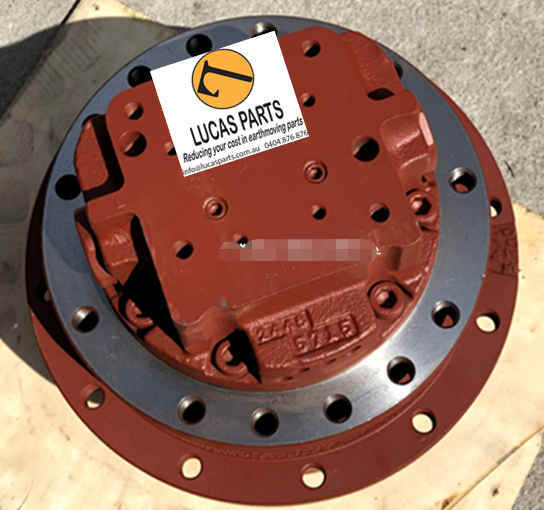

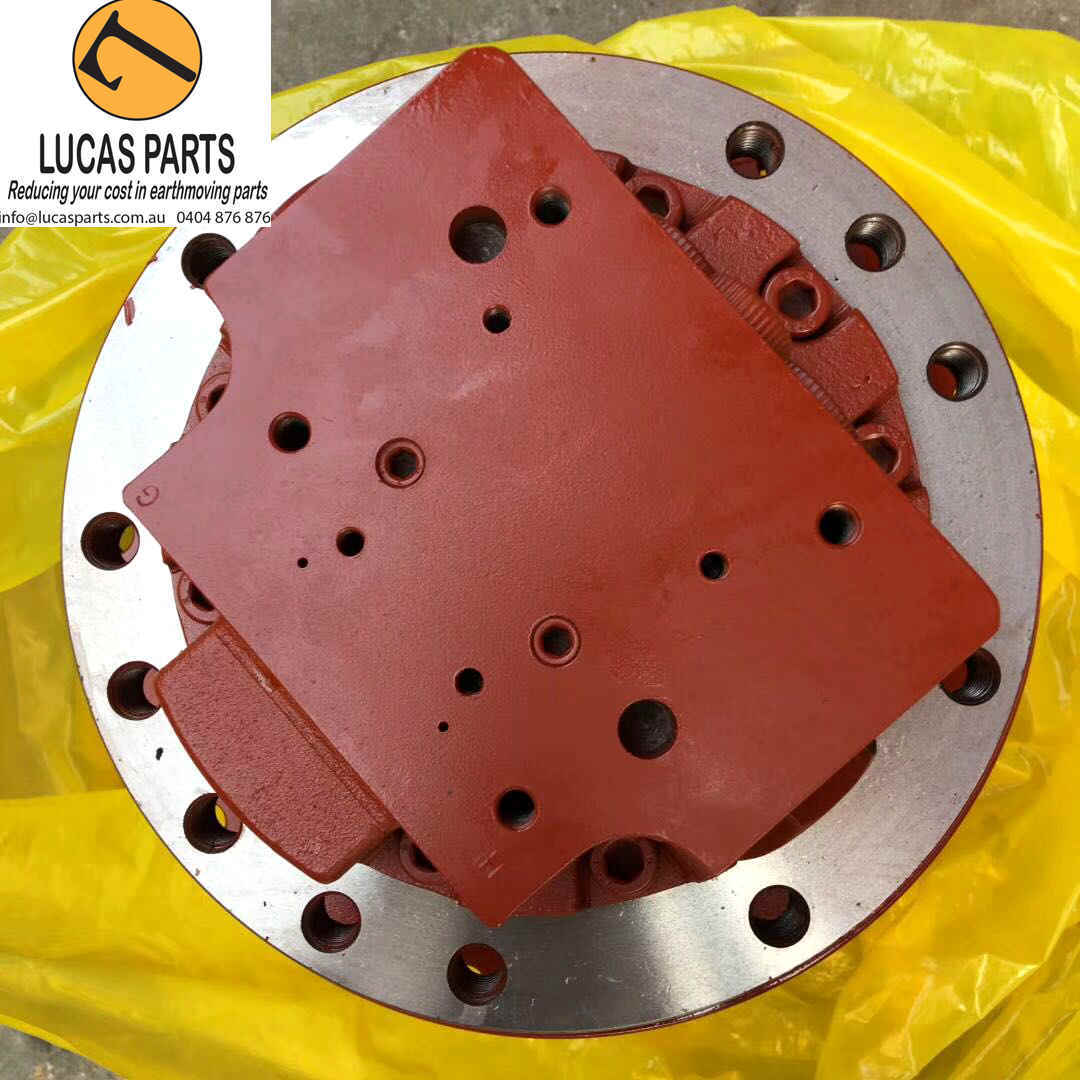

Aftermarket Brand New Final Drive comes with one year manufactuer warranty. Fully assembled hydraulic Travel Motor and reduction/planetary gearbox, filled with oil, ready to bolt on and go.



  (MM)   (MM)
A 220 B 180
C 230 D 262
E 75 M 9+3  (Bolt M14)
N 12 (Bolt M14)

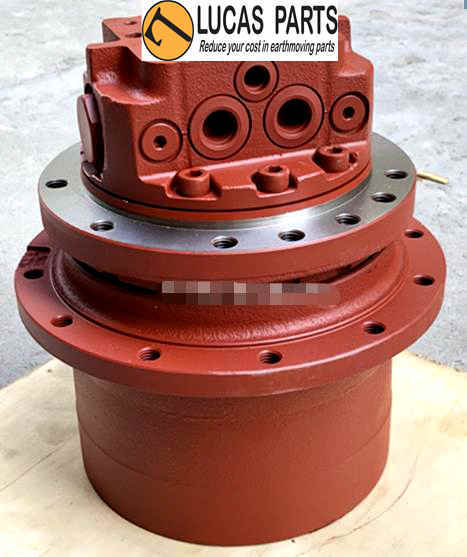

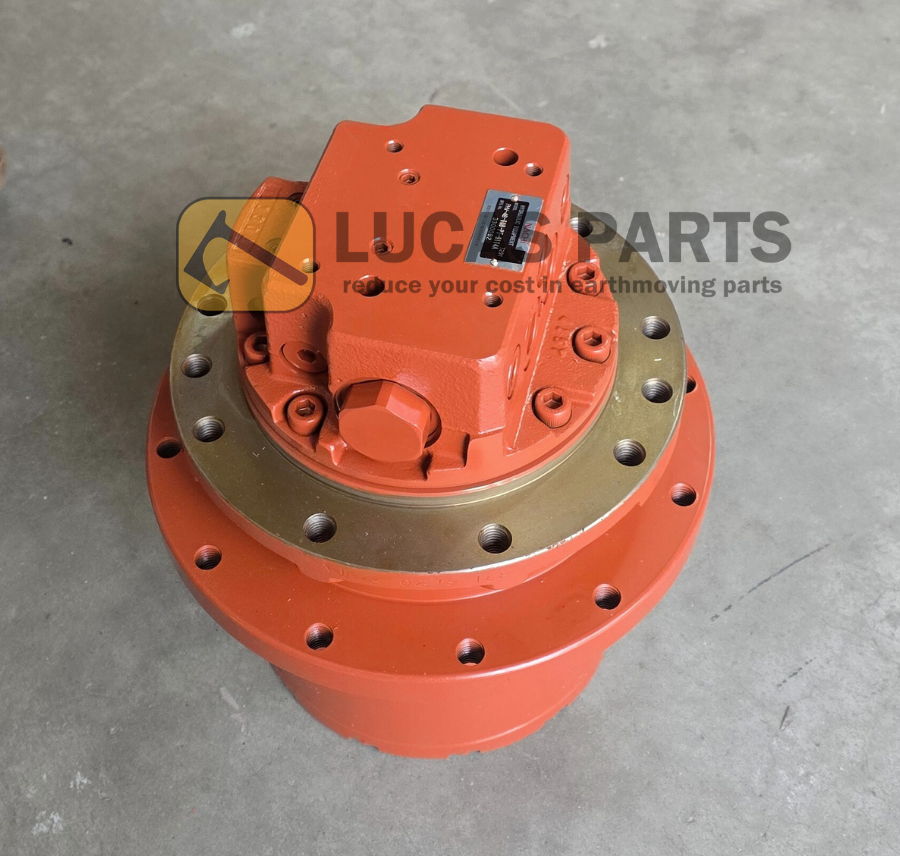

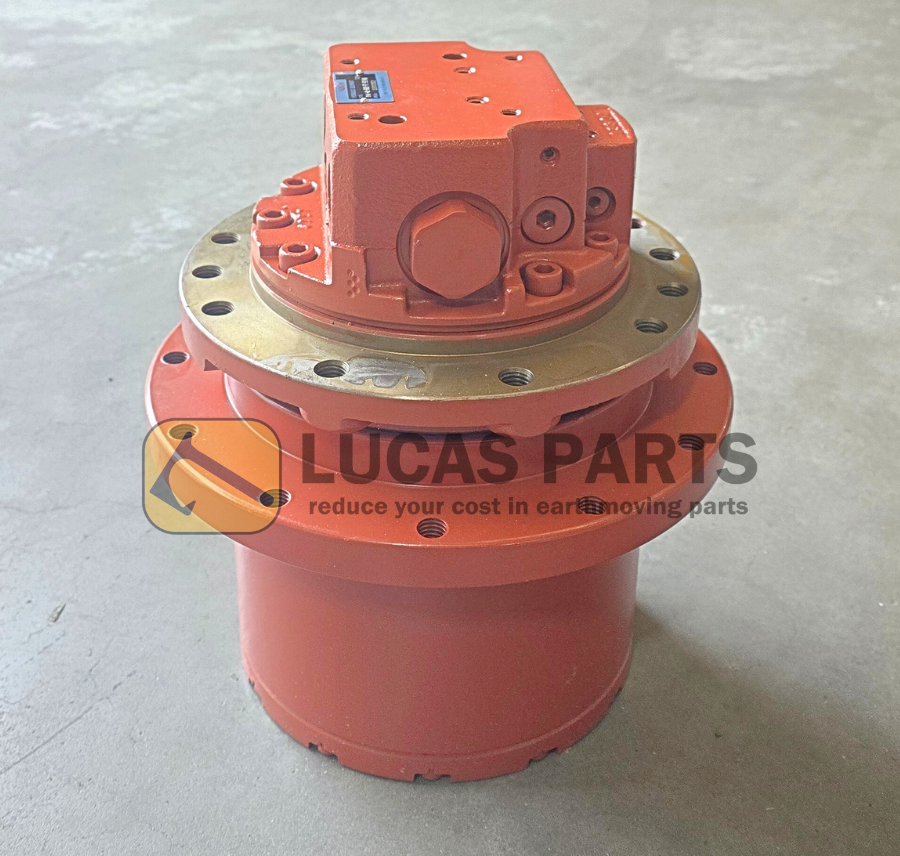

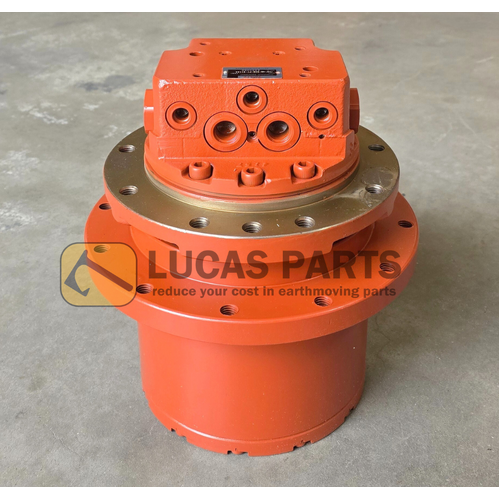

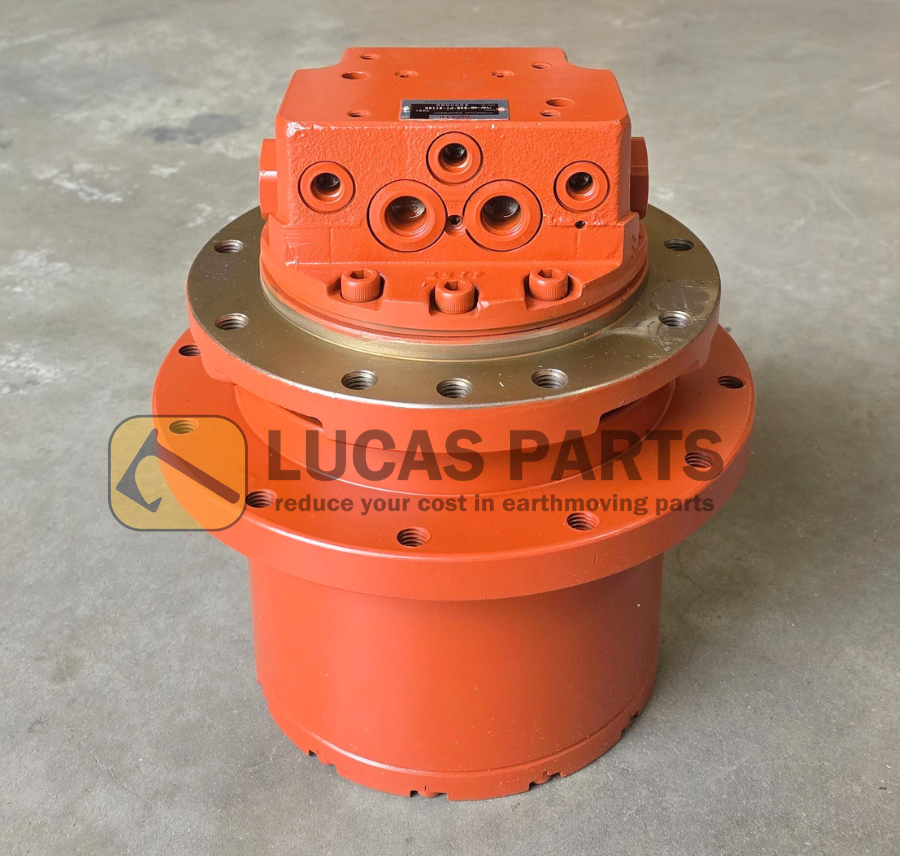

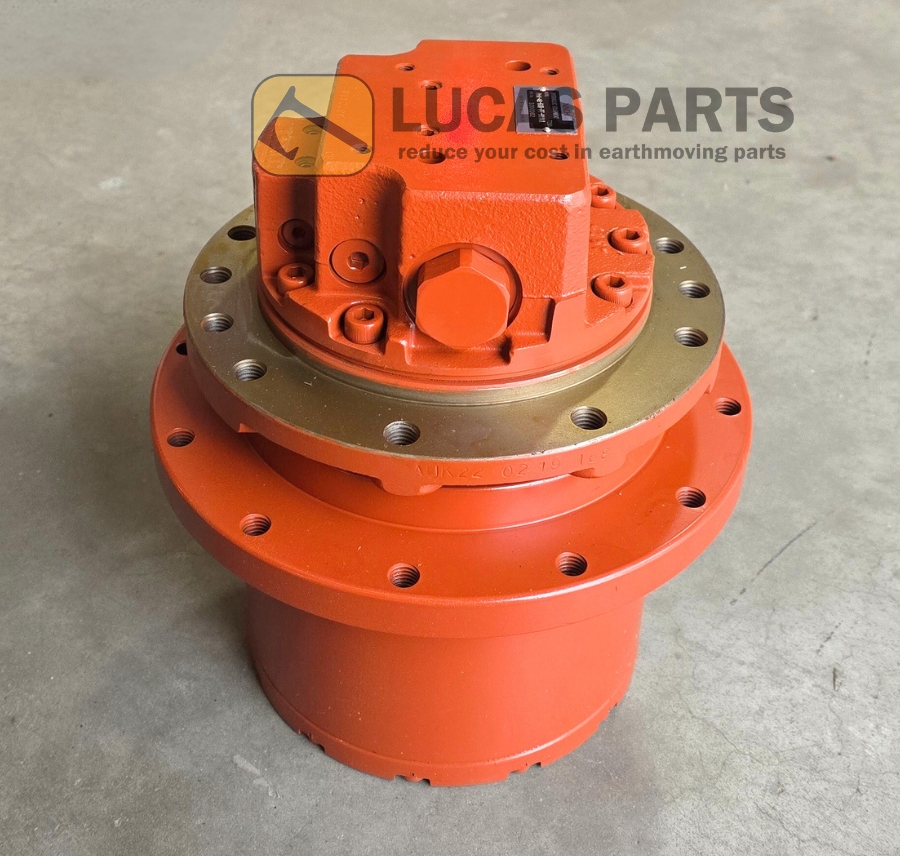

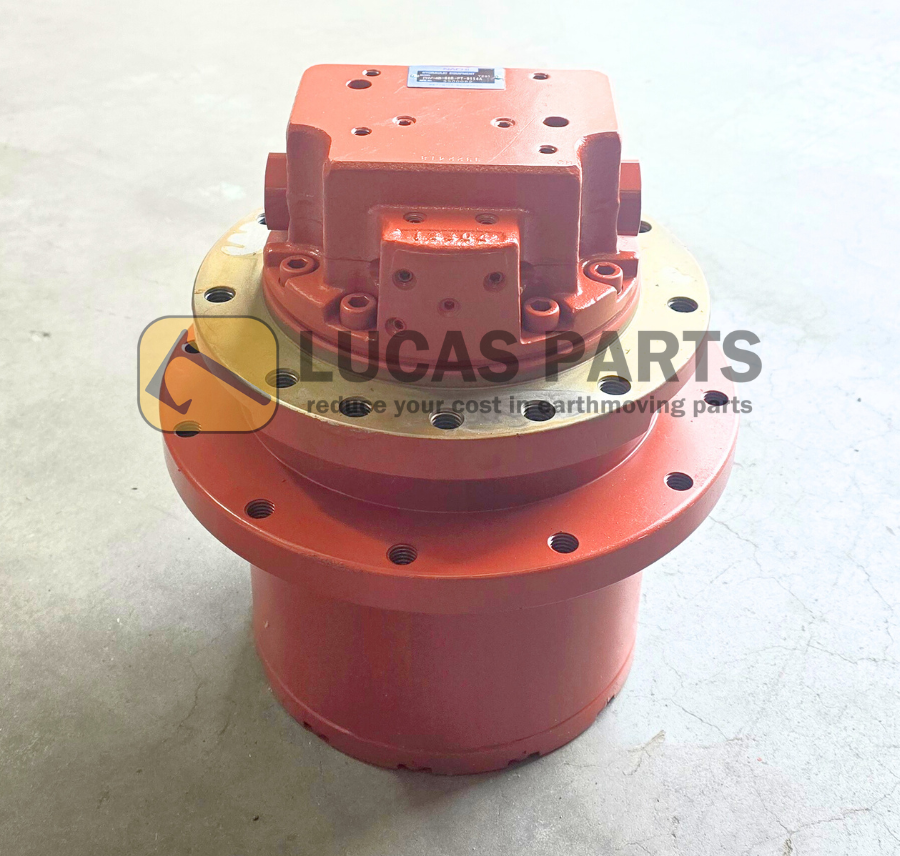

Excavator Final Drive Unit



Nachi hydraulic final drive gear oil typically requires a combination of hydraulic oil and gear oil. The hydraulic oil, often VG46 or VG32 anti-wear hydraulic oil, circulates to drive the final drive motor and provide lubrication and cooling. The gear oil, typically SAE 80W/90 with a GL5 grade, lubricates the reduction gears and bearings. The specific grade and type may vary depending on the application and operating conditions.
Hydraulic Oil:

  •     Purpose: Powers the hydraulic motor, ensuring rotation and providing lubrication and cooling.
  • Common Grades: VG46 or VG32 anti-wear hydraulic oil.
  • Viscosity: Measured in centistokes (cSt), with 32 being the thinnest and 68 being the thickest.
  • Temperature Range: Typically suitable for -20 to 90 degrees Celsius.

Gear Oil:

  •     Purpose: Lubricates the gears and bearings within the final drive reduction.
  • Common Grade: SAE 80W/90 with GL5 rating.
  • Viscosity: Around 120 centistokes at 100°F (38°C).
  • EP Additives: Gear oils often contain extreme pressure (EP) additives, which may have a sulfurous smell.
  • Checking and Changing: Gear oil levels should be checked regularly (e.g., every 100 working hours) and changed when necessary.

Specifications

SKU FDU05101G
Shipping Weight 60.0000kg
Shipping Width 0.600m
Shipping Height 0.600m
Shipping Length 0.600m
Shipping Cubic 0.216000000m3
Unit Of Measure ea
