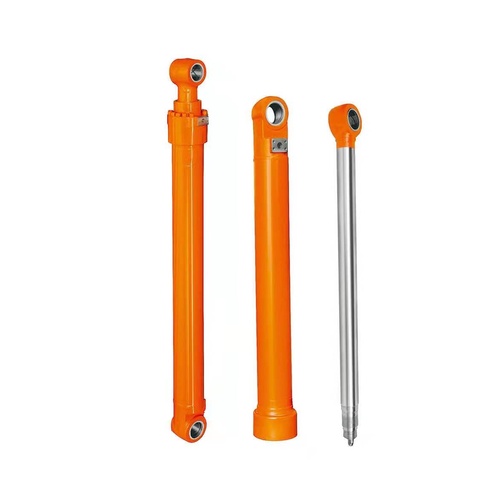

Arm Cylinder Assembly EX120-2 EX120-5 EX120-6 ZX135 PN 4364913

SKU: HCAA10104

Arm Cylinder Assembly EX120-2 EX120-5 EX120-6 ZX135 PN 4364913

$5,450.00

VIP Unlock member-only pricing — Sign in or Join VIP Club

VIP Club Rewards. You could earn 5,450 Points. Detail.

VIP Club Rewards Program

Register now to become a member and enjoy exclusive member pricing at VIP Club.
As a VIP member, you earn 1 point for every $1 you spend. Every 100 points is worth $1 off any future order.

To see your reward points and use them as a discount, please sign in.

Join VIP Club Now

Sold Out Make an Enquiry

Description

Lucas Parts provides premium Arm Cylinder assemblies suitable for Hitachi EX120-2 EX120-5 EX120-6 ZX135 excavators. The arm cylinder is an essential hydraulic component that controls the movement and digging power of the excavator arm, delivering smooth and efficient operation on construction, earthmoving, and mining jobs.

Manufactured for durability and performance, these hydraulic arm cylinders are built to withstand demanding working conditions while maintaining reliable lifting and digging strength. Ideal for repair, replacement, or machine maintenance, Lucas Parts offers dependable excavator hydraulic parts with Australia-wide support.

Features:

Heavy-duty construction
Reliable hydraulic performance
Designed for long service life
Suitable replacement for worn or damaged cylinders
Quality excavator parts from Lucas Parts

Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke

Pin-and-Bush-Location-Diagram

Lucas Parts provides premium Arm Cylinder assemblies suitable for Komatsu PC100-5 and PC120-5 excavators. The arm cylinder is an essential hydraulic component that controls the movement and digging power of the excavator arm, delivering smooth and efficient operation on construction, earthmoving, and mining jobs.

Suitable for:

Komatsu PC100-5
Komatsu PC120-5

Features:

Heavy-duty construction
Reliable hydraulic performance
Designed for long service life
Suitable replacement for worn or damaged cylinders
Quality excavator parts from Lucas Parts

Contact Lucas Parts today on 1300 987 300 for pricing and availability.

Hitachi EX120-2, EX120-5, EX120-6, ZX135 Arm / Stick Cylinder Assembly – Complete Replacement Unit

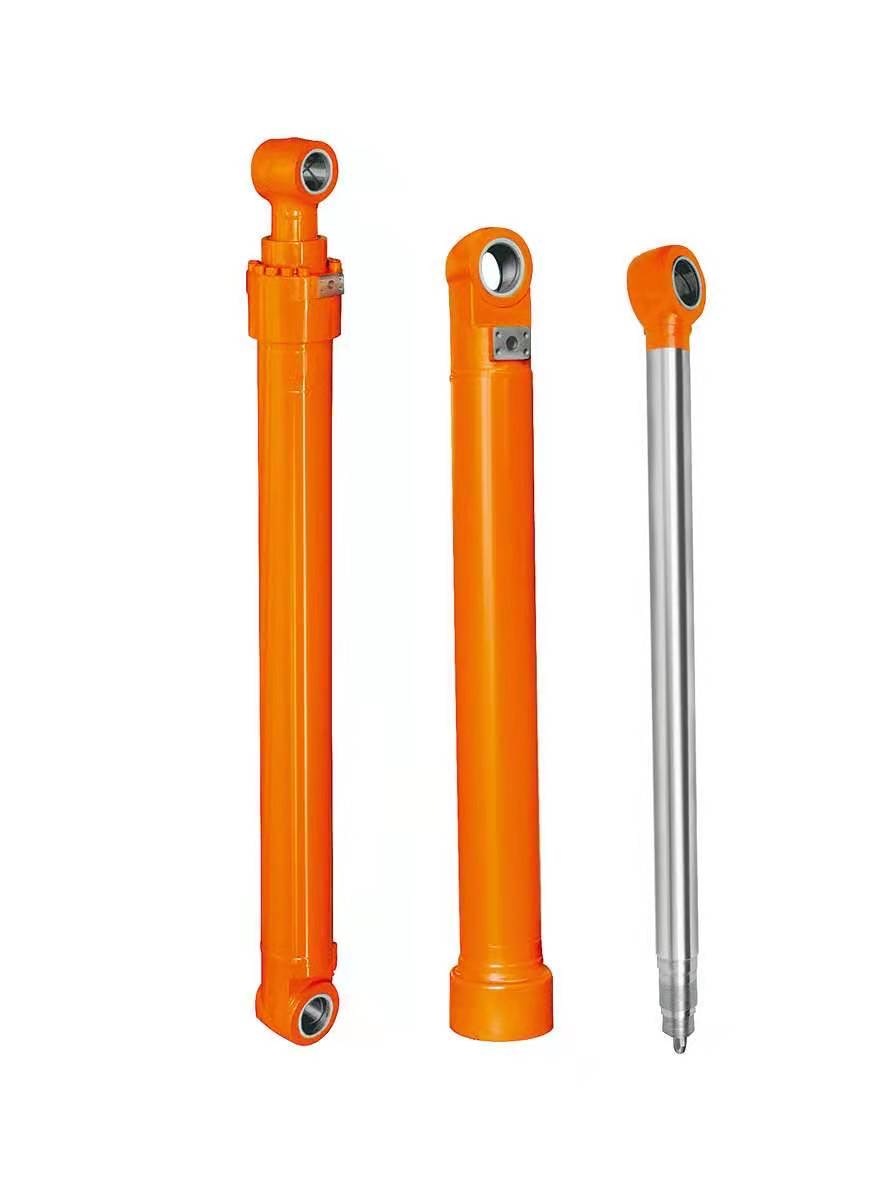

Get your Hitachi EX120-2, EX120-5, EX120-6, ZX135 reaching and crowding with full force again with this complete arm cylinder assembly. Built to match the original OEM dimensions, it comes complete with barrel, rod, piston, gland and seals already fitted. Cross-references OEM part number 4364913.

Internal bypass in an arm cylinder robs you of digging force and makes fine grading difficult — and a scored or bent rod will only keep destroying seals. Rather than losing days to a rebuild, swap in a complete new assembly and get the machine straight back to work. At this size the machine is usually earning on a contract, so a leaking or weak cylinder is a direct hit to productivity.

At a Glance

Our SKU	HCAA10104
OEM Reference	4364913
Part Type	Arm / Stick Hydraulic Cylinder Assembly
Suits	Hitachi EX120-2, EX120-5, EX120-6, ZX135 Excavator
Supplied As	Complete assembly – barrel, rod, piston, gland & seals fitted
Condition	Brand New, Aftermarket (OEM Spec)
Warranty	Backed by Lucas Parts Quality Guarantee

Why Order From Us

Local Stock – Held in Melbourne, so there is no long overseas wait
Australia-Wide Shipping – Fast dispatch from our Melbourne warehouse
Trusted Supplier – Specialists in genuine & aftermarket parts for Takeuchi, Kubota, Komatsu, CAT and more
Trade Friendly – Account and wholesale pricing available for workshops and fleets

Fitment Note: To avoid any fitment issues, check your model and serial number range with us first — we're happy to confirm compatibility by phone or email.

Specifications

SKU	HCAA10104
Brand	Komatsu
Shipping Weight	170.0000kg
Shipping Width	0.400m
Shipping Height	0.401m
Shipping Length	1.500m
Shipping Cubic	0.240600000m3
Unit Of Measure	ea
