SKU: B9100X130X105F165

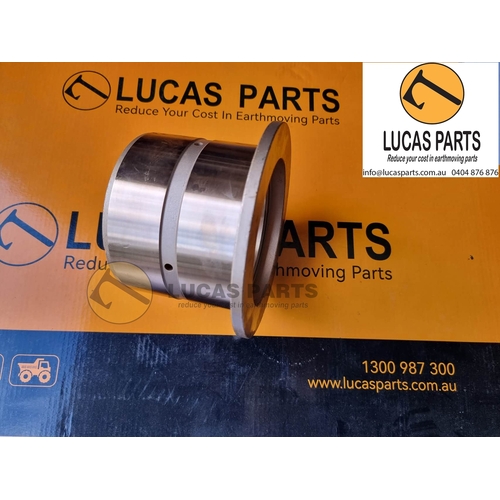

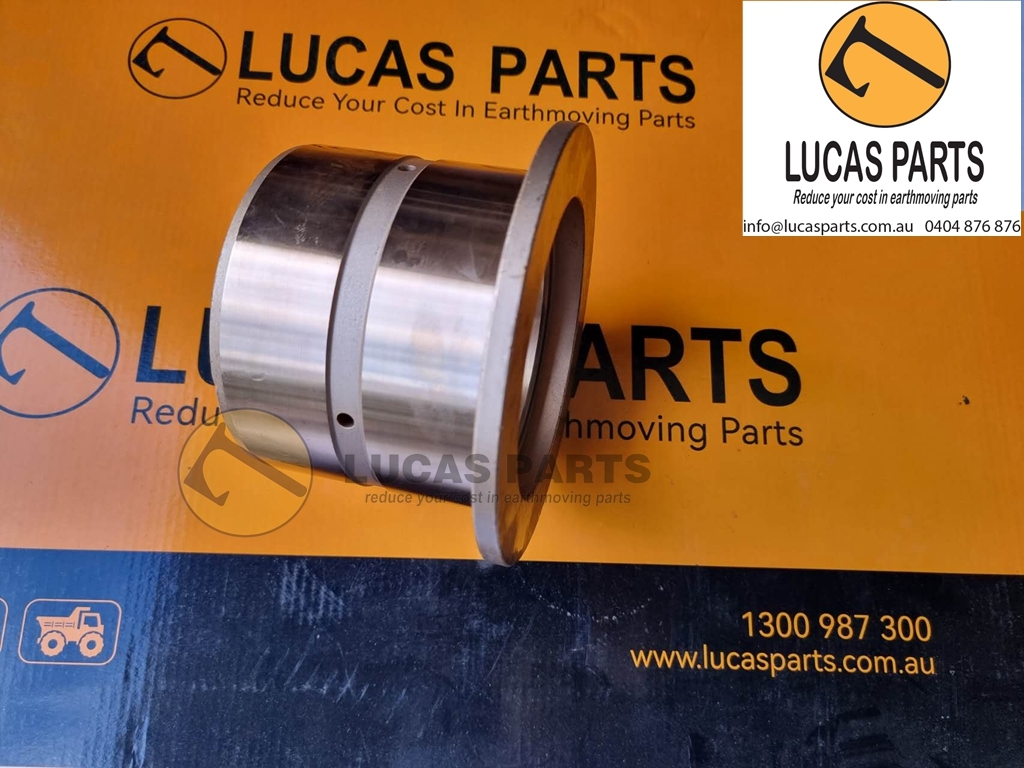

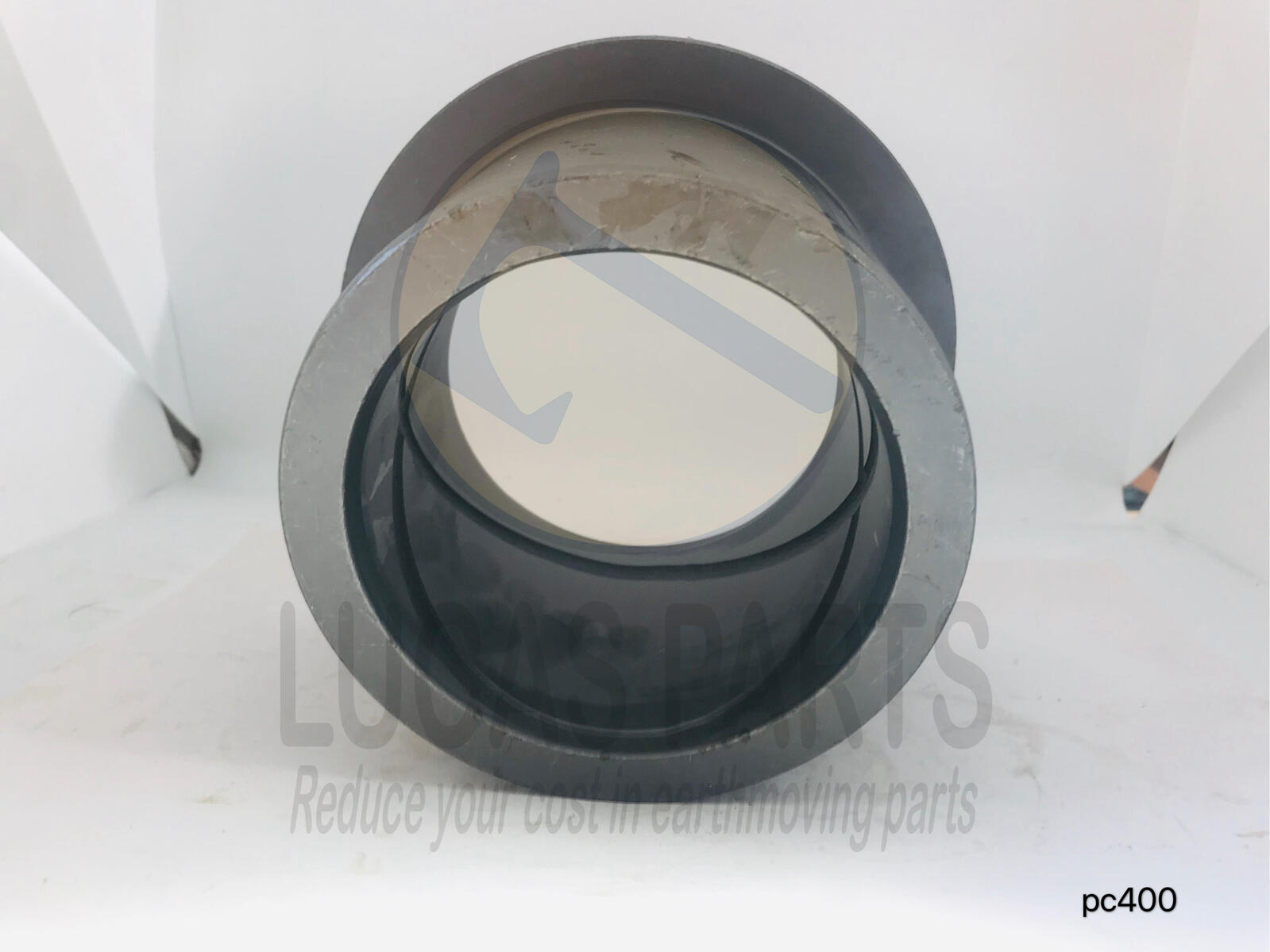

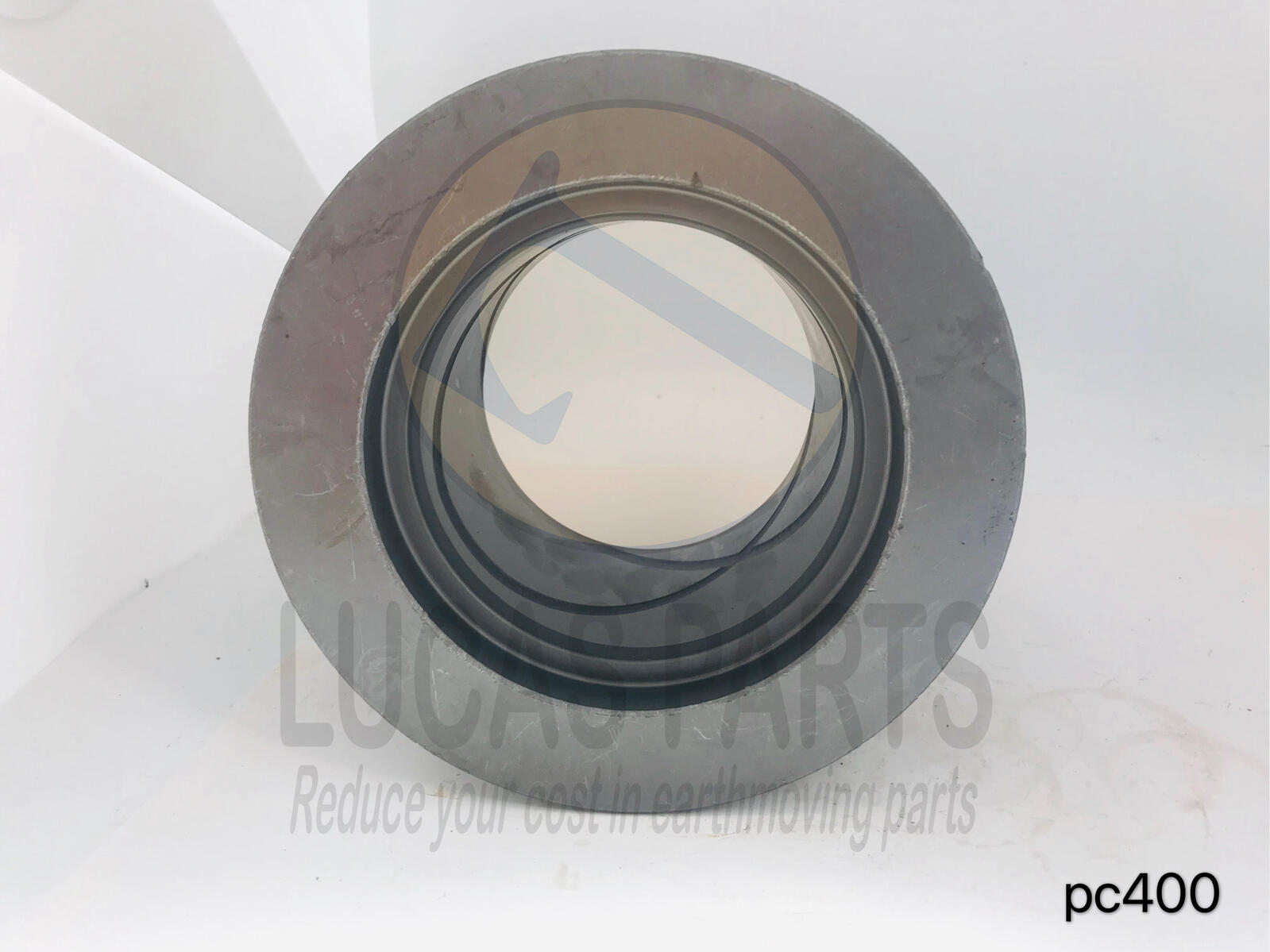

Bush 100*130*105mm /165 Flange ID*OD*L*FD PC400-6 PC400-7 PC400-8 PC450-8 PC460LC-8 PC490LC-9

$125.00



Description

Compatible with the following equipment: Postion 9

  • PC400-6,PC400-8,PC400-8R,PC400LC-8,
  • PC400LC-8R,PC400LCSE-8R,PC450-8,
  • PC450-8R,PC450LC-7E0,PC450LC-8,
  • PC450LC-8R,PC460LC-8,PC490-10,
  • PC490LC-10,PC490LC-11

Part number: 208-70-72170 2087072170

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B9100X130X105F165
Brand Lucas Parts
Shipping Weight 4.9000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.004500000m3
Unit Of Measure ea
