SKU: B80X120X85DF160

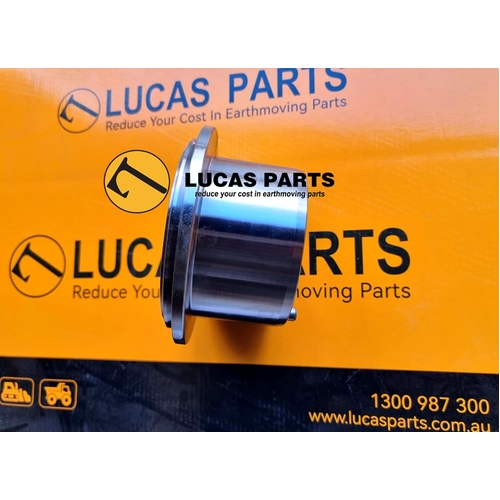

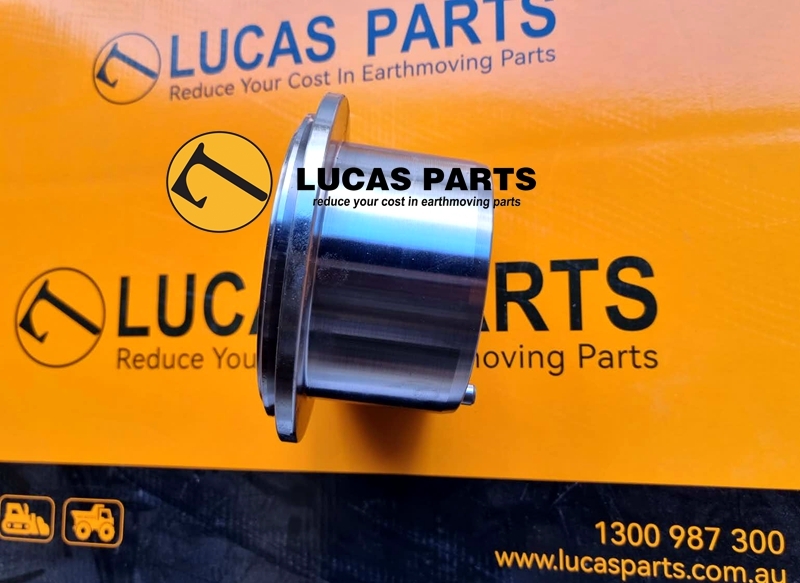

Bush 80x120x85mm /160 Flange IDxODxLxFD CAT320 CAT321 CAT323 CAT324 CAT325 PN 1935015

$210.00



Description

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our bushes are heat treated and material matched for maximum service life. Made from 40Cr steel, quenching depth from 1.5-2.8mm and hardness is HRC 48-52.

Specifications

40Cr steel is alloy structural steel, carbon content is 0.37-0.45%,0.8-1.1% chromium, 1000 Mpa tensile strength, yield strength is 800 Mpa; it generally uses in parts which can be loaded with large force.

SKU B80X120X85DF160
Brand Lucas Parts
Shipping Weight 6.0000kg
Shipping Width 0.180m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.005400000m3
Unit Of Measure ea
