SKU: P9S100X300RENGTHD

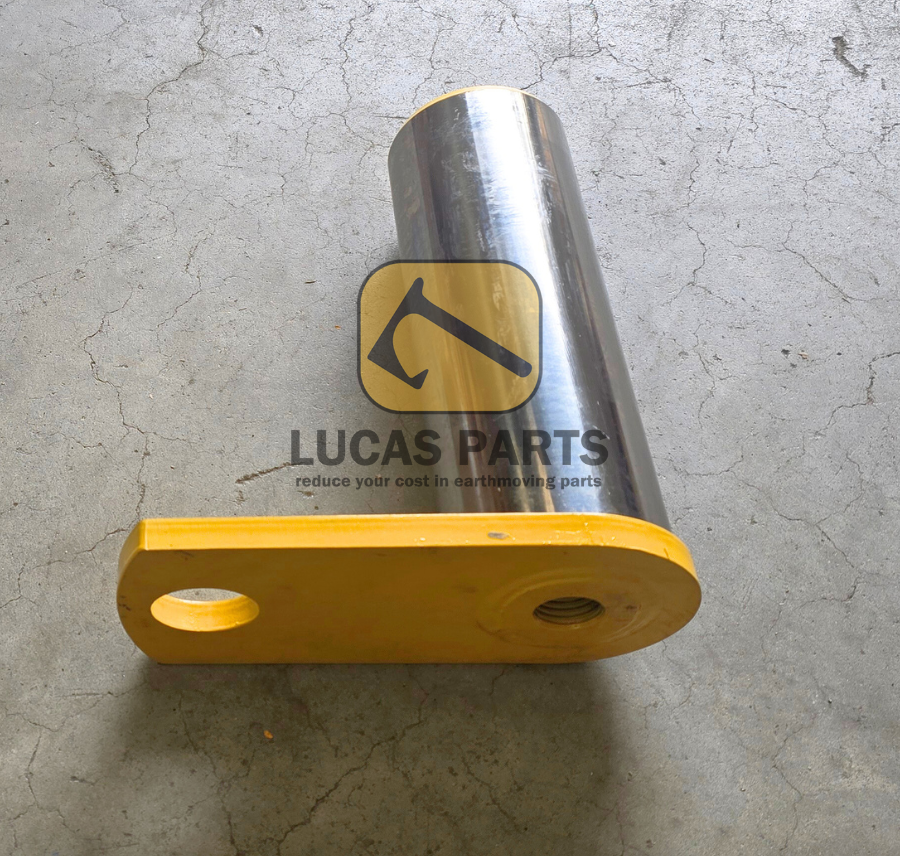

Excavator Pin 100x300mm IDxTL Arm Lift Ram Bottom Pin (P3) CAT 345B 345C 350 355 365B PN 103-4360 1034360

$420.00



Description

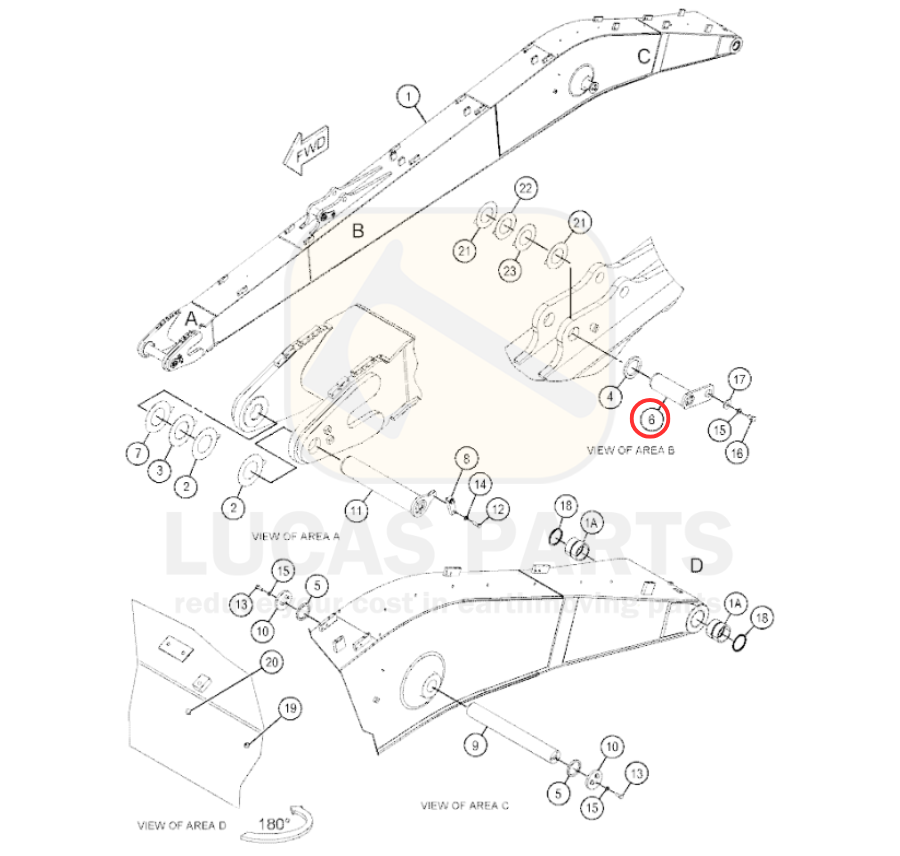

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 428 Mpa; it is widely used in machinery parts.









SKU P9S100X300RENGTHD
Brand Lucas Parts
Shipping Weight 27.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.350m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
