SKU: P9S110X1035TNG

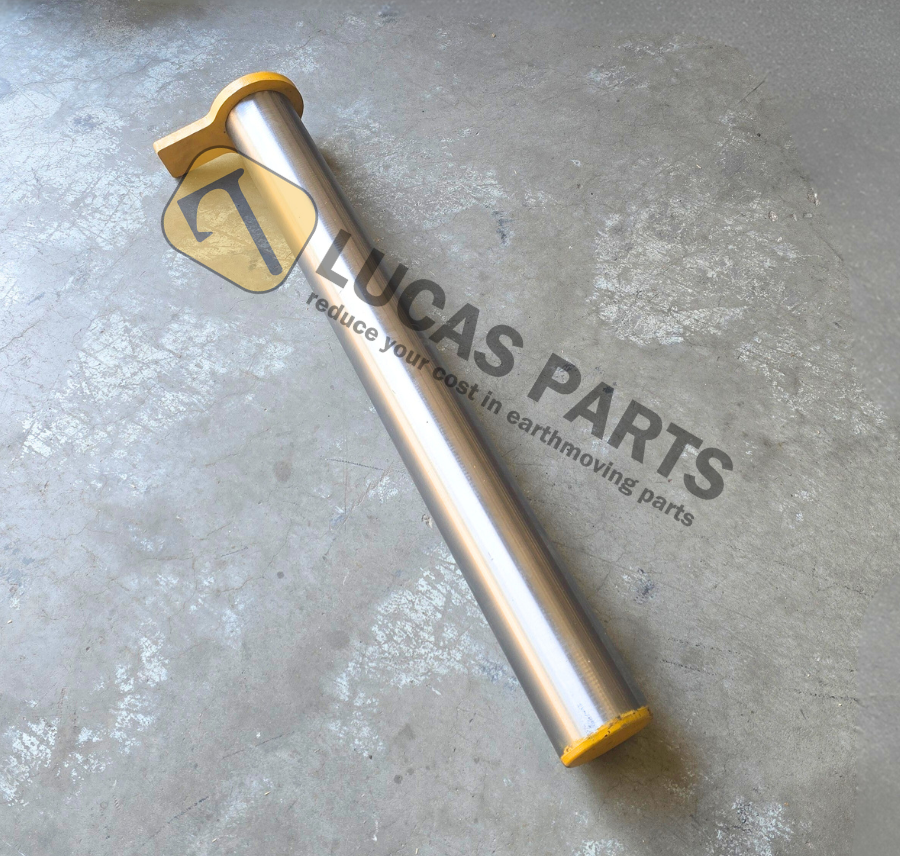

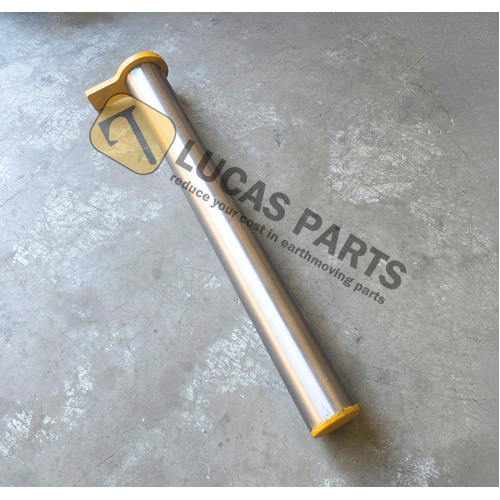

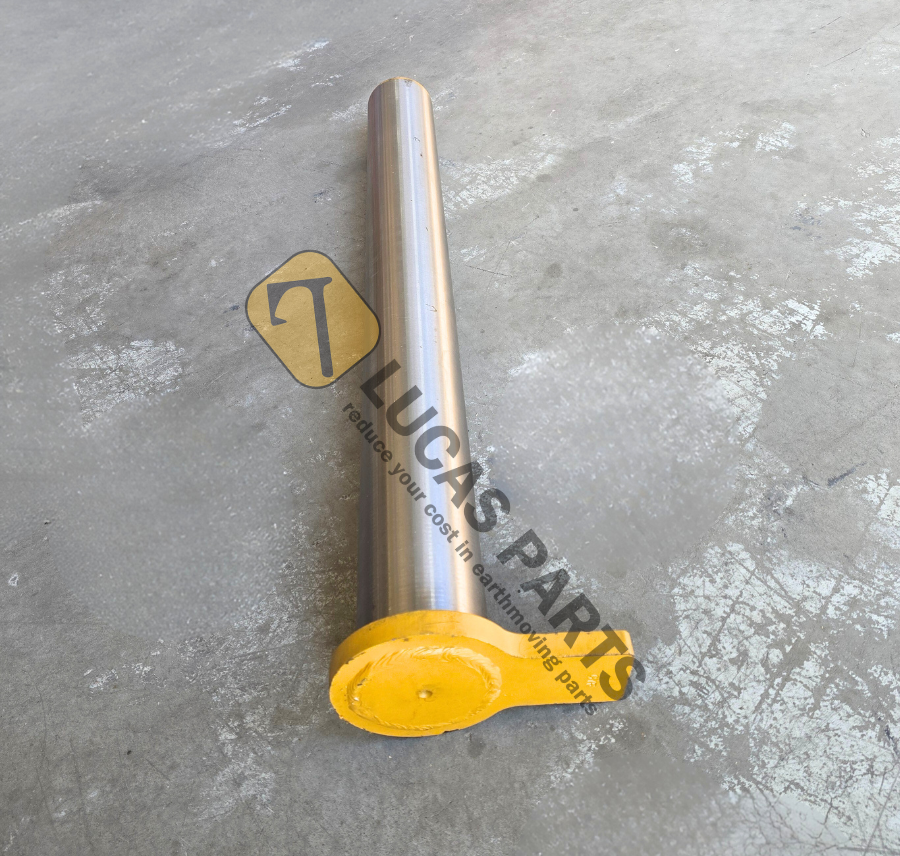

Excavator Pin 110x1035mm IDxTL Boom Bottom Pin (2) PC300-7 PC350-7 PC360LC-10 EC350 PN 207-70-71130

$2,300.00



Description

Compatible with the following equipment:

KOMATSU

  • PC300-7 PC300-7 SERIAL NUMBERS : J20001-UP PC300-7-AA PC300-7E0
  • PC300-8 PC300-8M0 PC300HD-7E0 PC300HD-7L PC300HD-8 s/n A87001 and up
  • PC300LC-7 PC300LC-7-BA PC300LC-7E0 PC300LC-7L PC300LC-8 PC300LL-7E0 PC300LL-7L
  • PC340LC-7K PC340LC-7K-E0 PC340NLC-7K PC340NLC-7K-E0
  • PC350-7 PC350-7-AA PC350-7E0 PC350-8 PC350HD-8 PC350LC-7
  • PC350LC-7-BA PC350LC-7E0 PC350LC-8 PC350LL-7E0 PC350NLC-8
  • PC360-7 PC360-8M0 PC360LC-10 PC380LC-7K PC390LC-10 PC390LL-10 A50601 & UP
  • PC300LC-8M0 PC350-8M0 PC350LC-8M0 PC360NLC-10





Part Number : 207-70-71130  2077071130

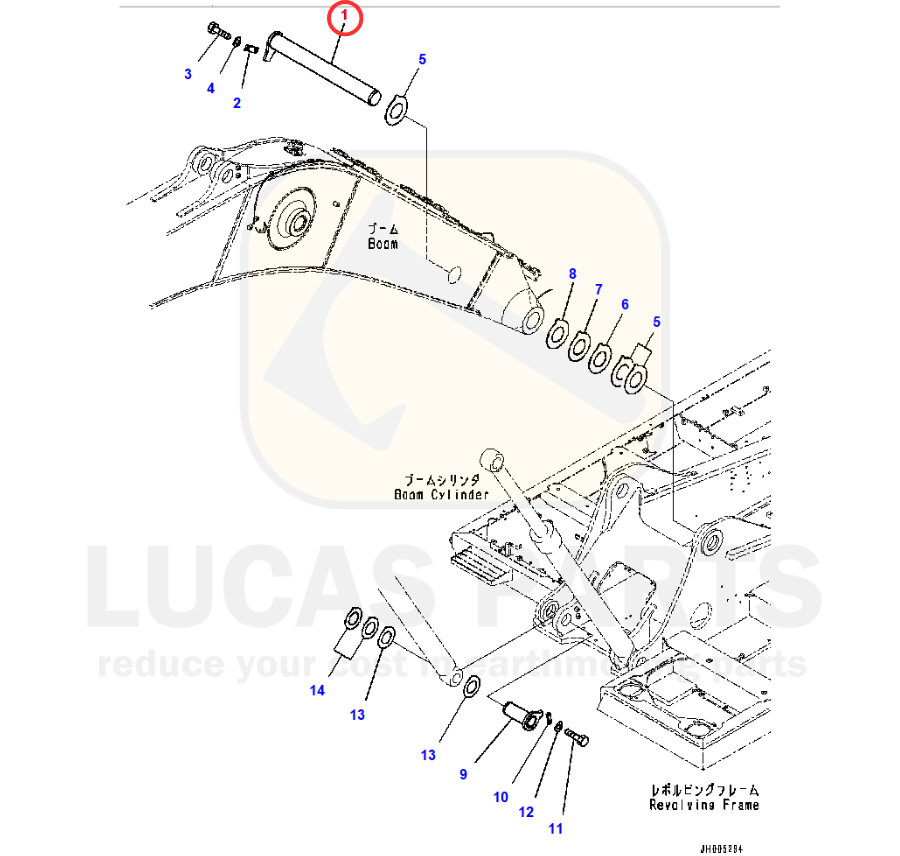

Pin-and-Bush-Location-Diagram





Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 428 Mpa; it is widely used in machinery parts.









SKU P9S110X1035TNG
Shipping Weight 120.0000kg
Shipping Width 0.400m
Shipping Height 0.350m
Shipping Length 1.200m
Shipping Cubic 0.168000000m3
Unit Of Measure ea
