SKU: P9S110X300VNG

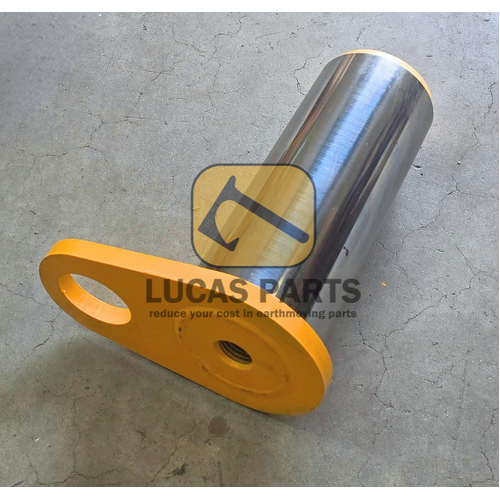

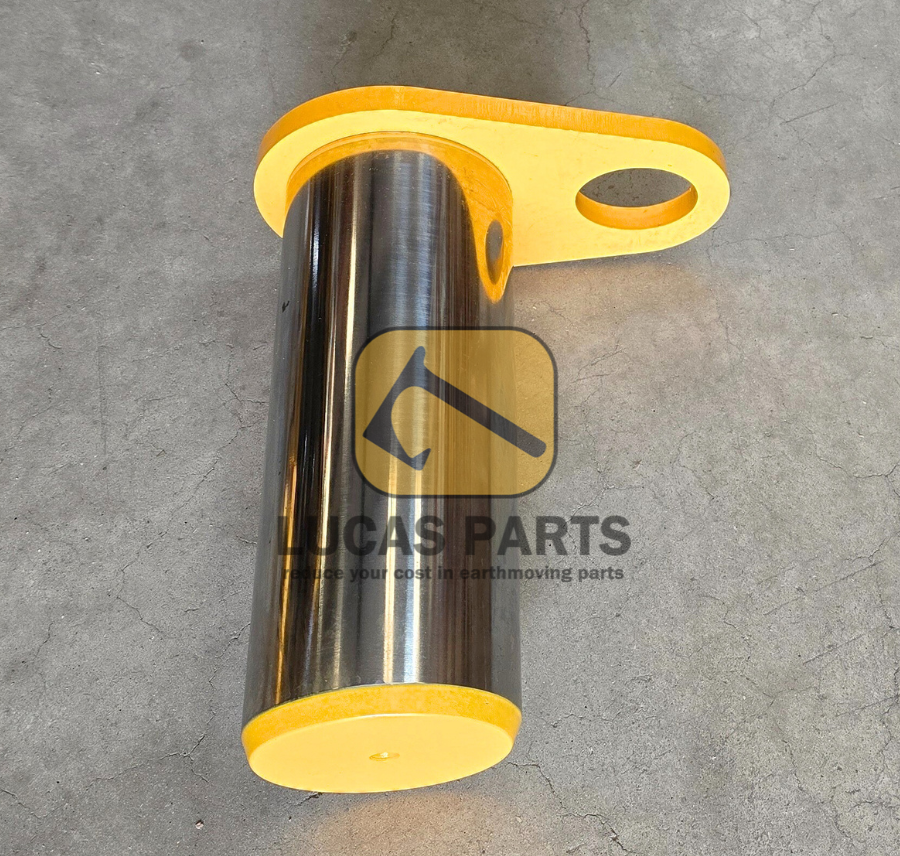

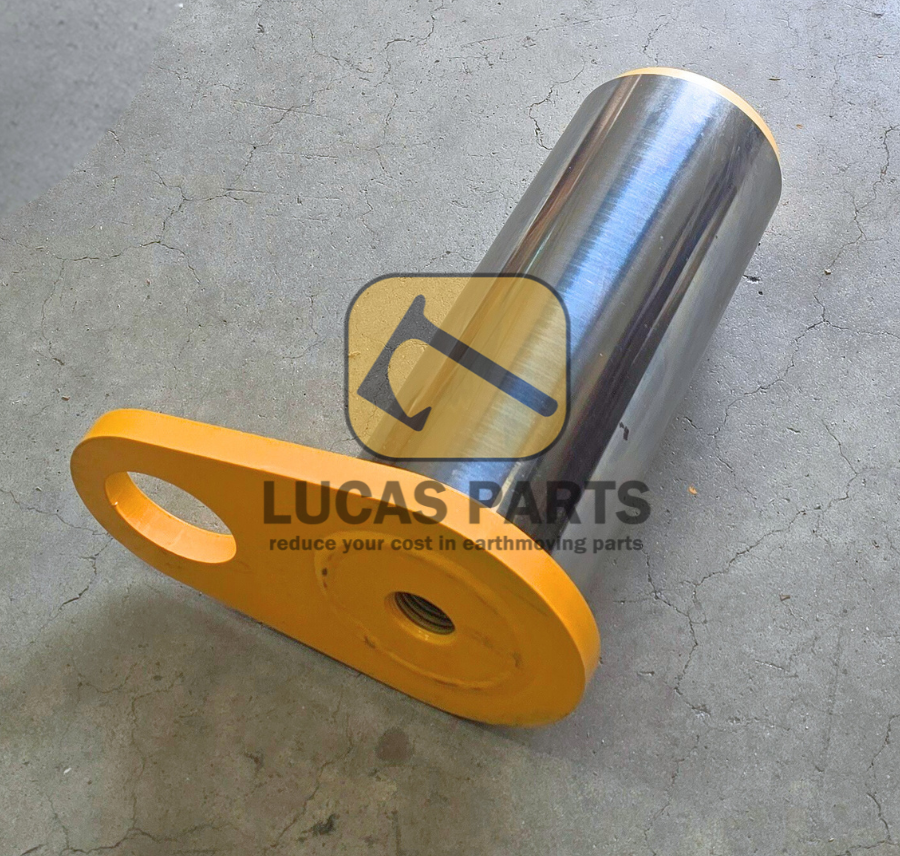

Excavator Pin 110x300mm IDxTL Boom Lift Ram Bottom Pin (P1) CAT 340F 345B 345C 345D 350 PN 4I-4996 4I4996

$480.00



Description

Compatible with the following equipment:

CATERPILLAR



  • W345C MH W345B II
  • 352 340F 345B II 345B L 340F L UHD 350-A L 345B II MH 350 L 345C 352 UHD
  • 349D L





Part Number : 4I-4996 4I4996

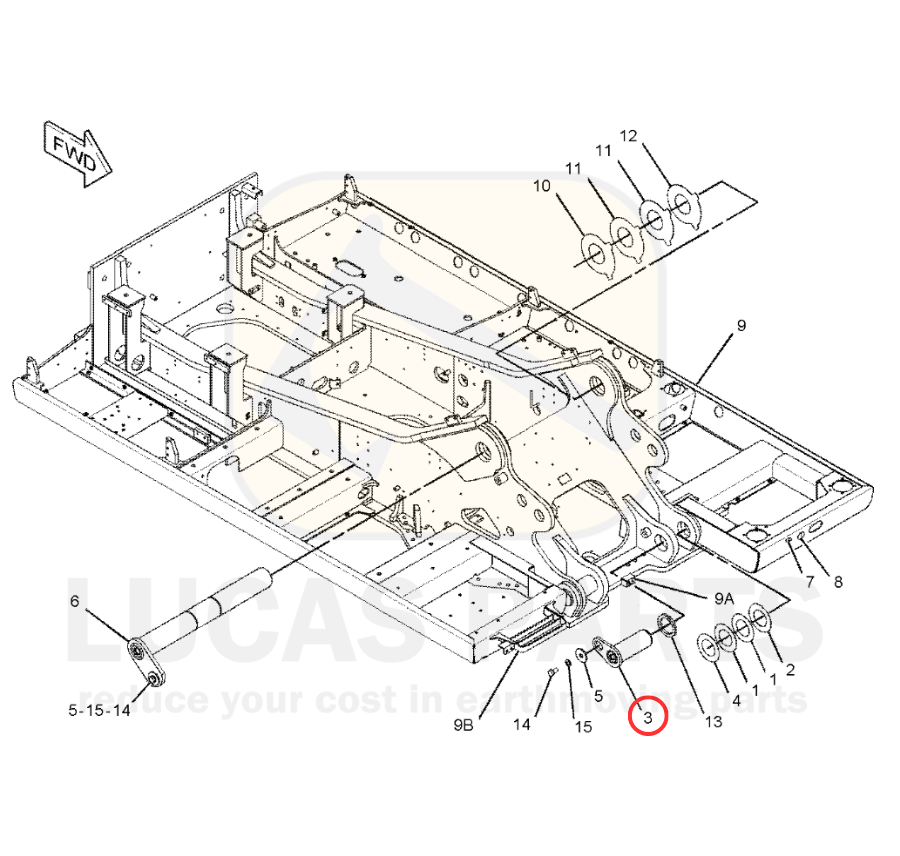

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 428 Mpa; it is widely used in machinery parts.









SKU P9S110X300VNG
Brand Lucas Parts
Shipping Weight 28.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.350m
Shipping Cubic 0.021000000m3
Unit Of Measure ea
