SKU: P40X260M1H

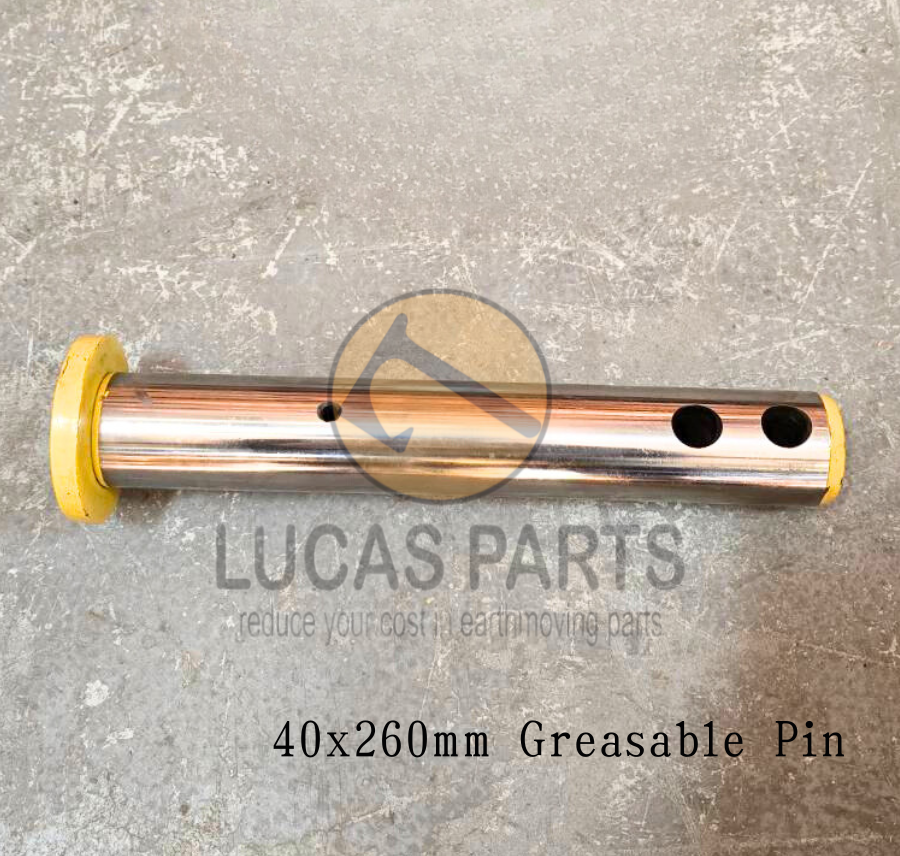

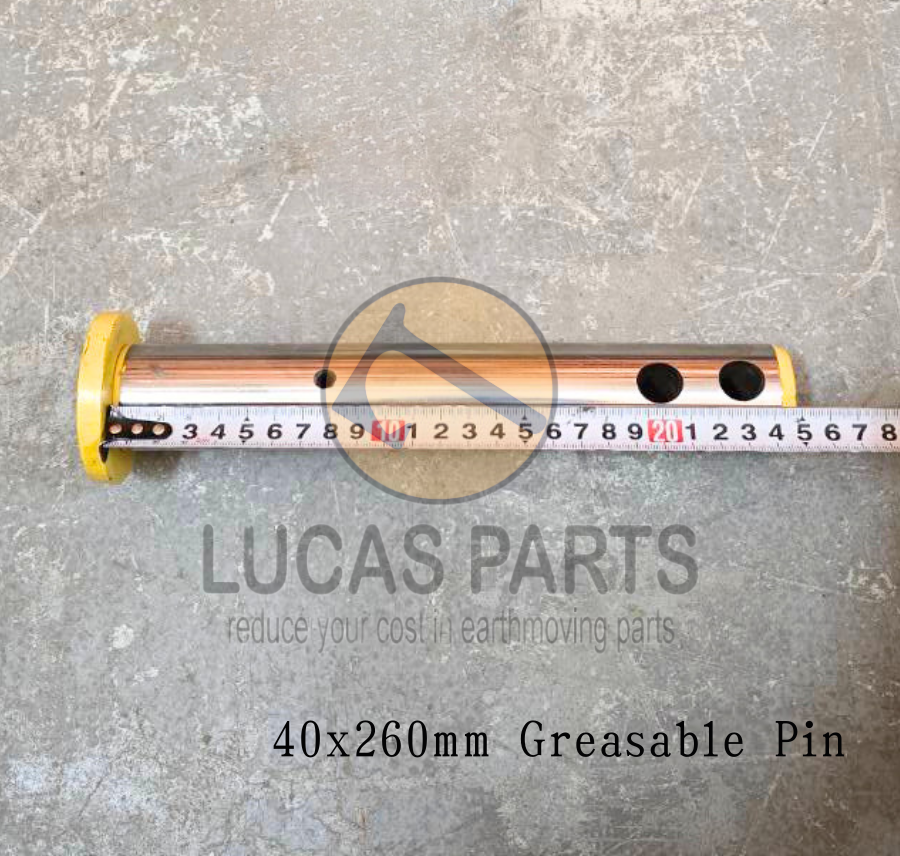

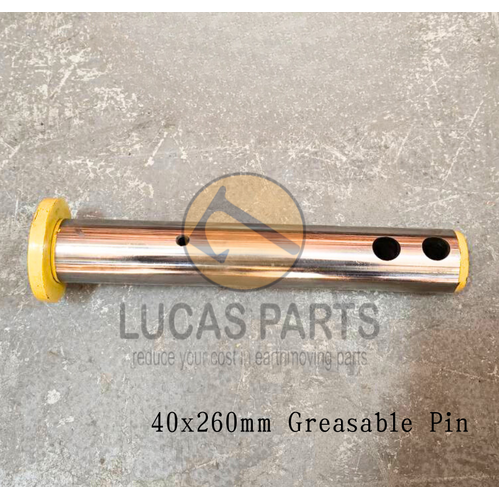

Excavator Pin 40x260mm IDxTL One Grease Hole

LH1= 230mm, LH2= 200mm, GH=75mm

$100.00
Expect to earn $3.53 (353 points) back at checkout.



Description





Pin and Bush Location Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 364 Mpa; it is widely used in machinery parts.









SKU P40X260M1H
Brand Lucas Parts
Shipping Weight 4.0000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.003000000m3
Unit Of Measure ea
