SKU: P70X508WNG1B

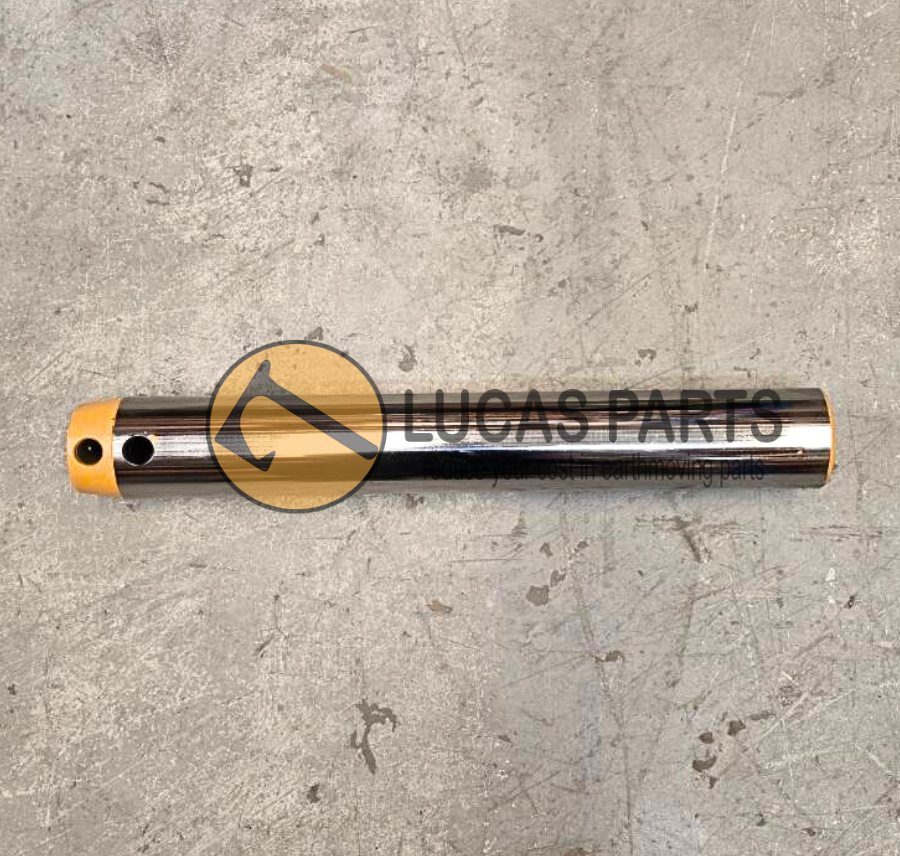

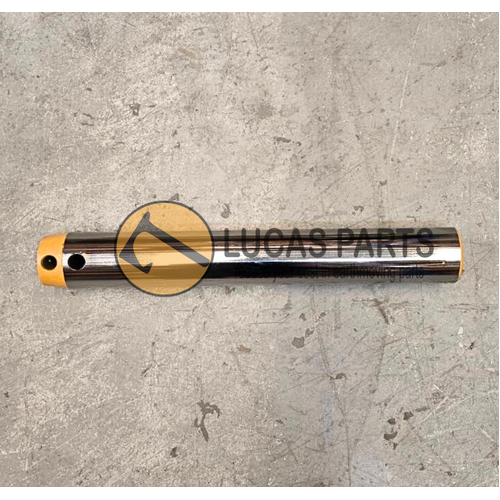

Excavator Pin 70*508mm ID*TL Bucket Link Pin (P9 P11) CAT 315 318D PN 106-6878

$305.00



Kobelco Part Number: LQ12B01440P1

Description

Fits the following  models:

Caterpiller

  • 318F L 318E L 318D L 318D2 L
  • 316F 316F L 316E L
  • 318D2 318 GC 318F
  • 317 N  317-A  317  317 GC  317-A N
  • 315-A  315-A L 315B 315B FM L 315B L 315C  315D L

Part Number: 106-6878



Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 399 Mpa; it is widely used in machinery parts.









SKU P70X508WNG1B
Brand Lucas Parts
Shipping Weight 18.0000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.530m
Shipping Cubic 0.007632000m3
Unit Of Measure ea
