SKU: P90X295WNG1B

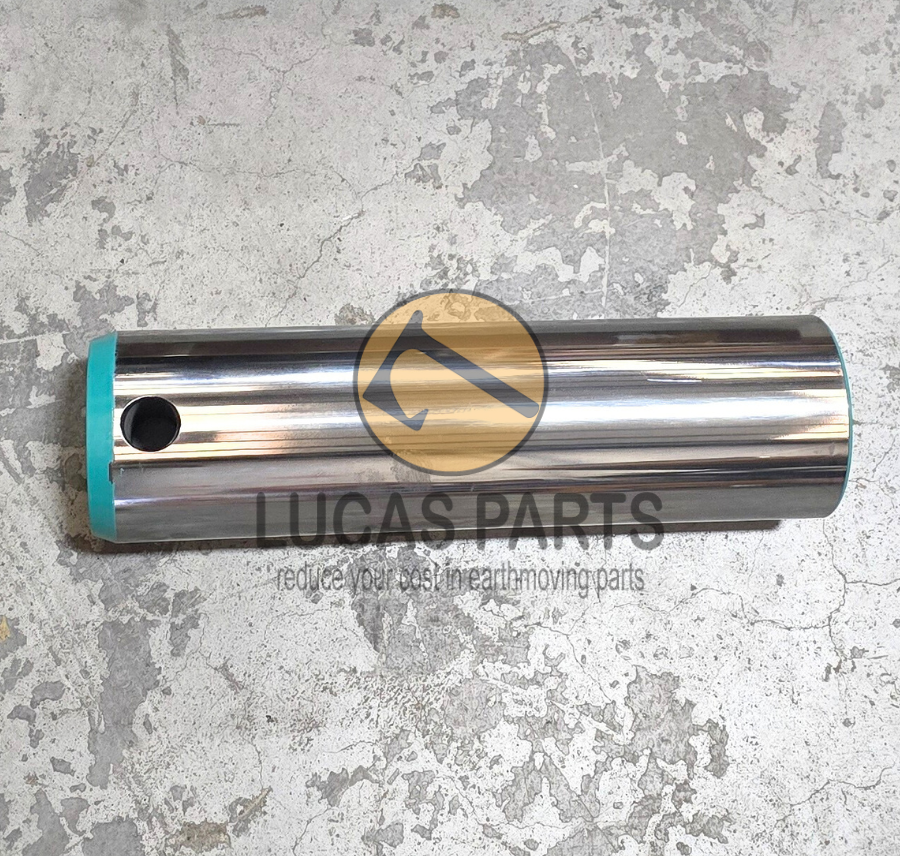

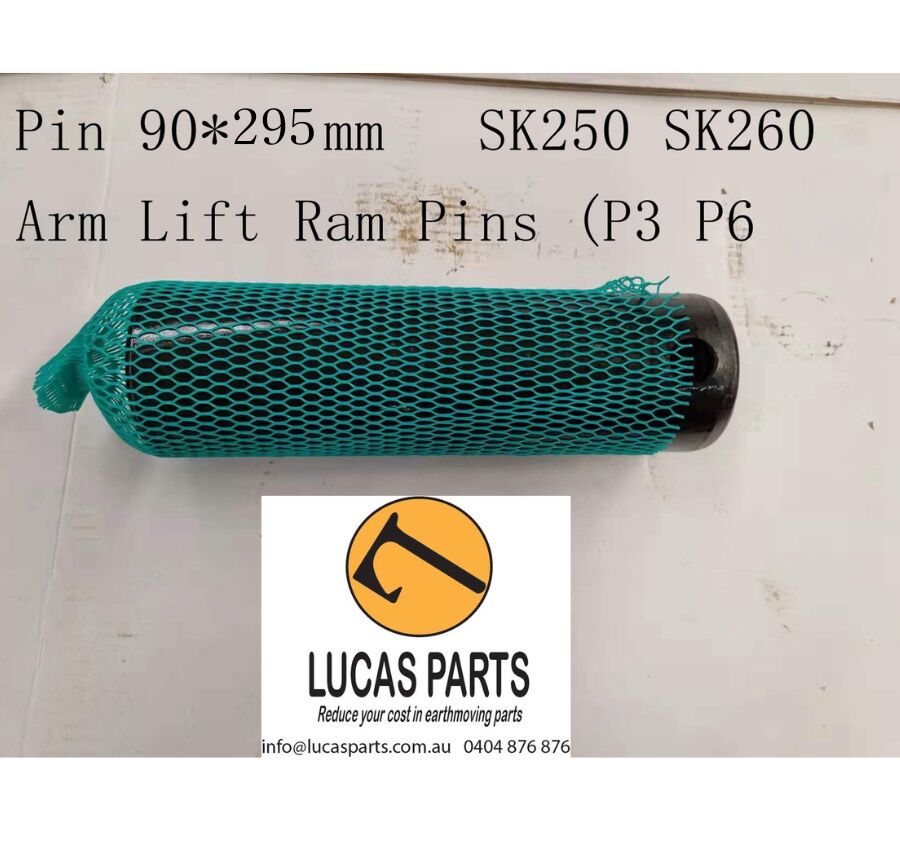

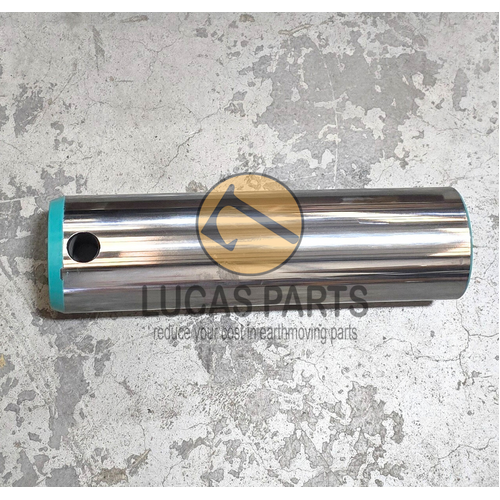

Excavator Pin 90x295mm IDxTL Arm Lift Ram Pins (P3 P6) SK250 SK260 PN LQ02B01380P1

$280.00



Description





Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P90X295WNG1B
Brand Lucas Parts
Shipping Weight 17.0000kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.350m
Shipping Cubic 0.007875000m3
Unit Of Measure ea
