SKU: P90X270RENG

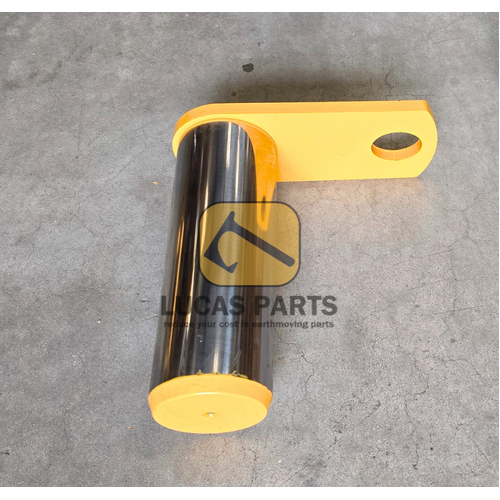

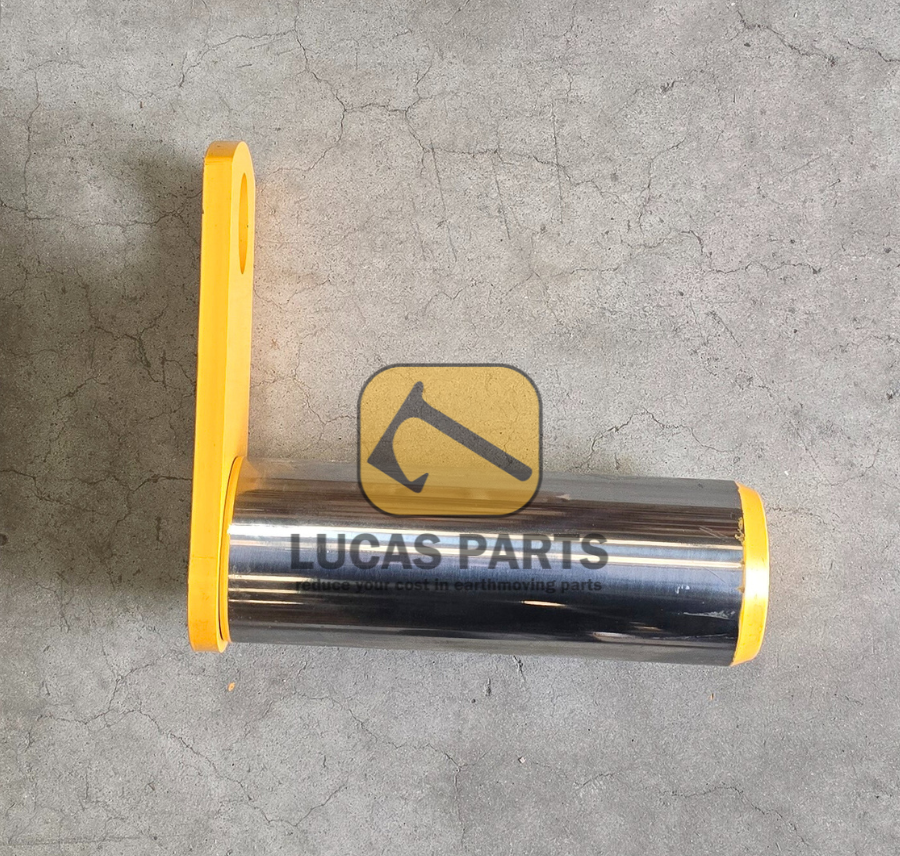

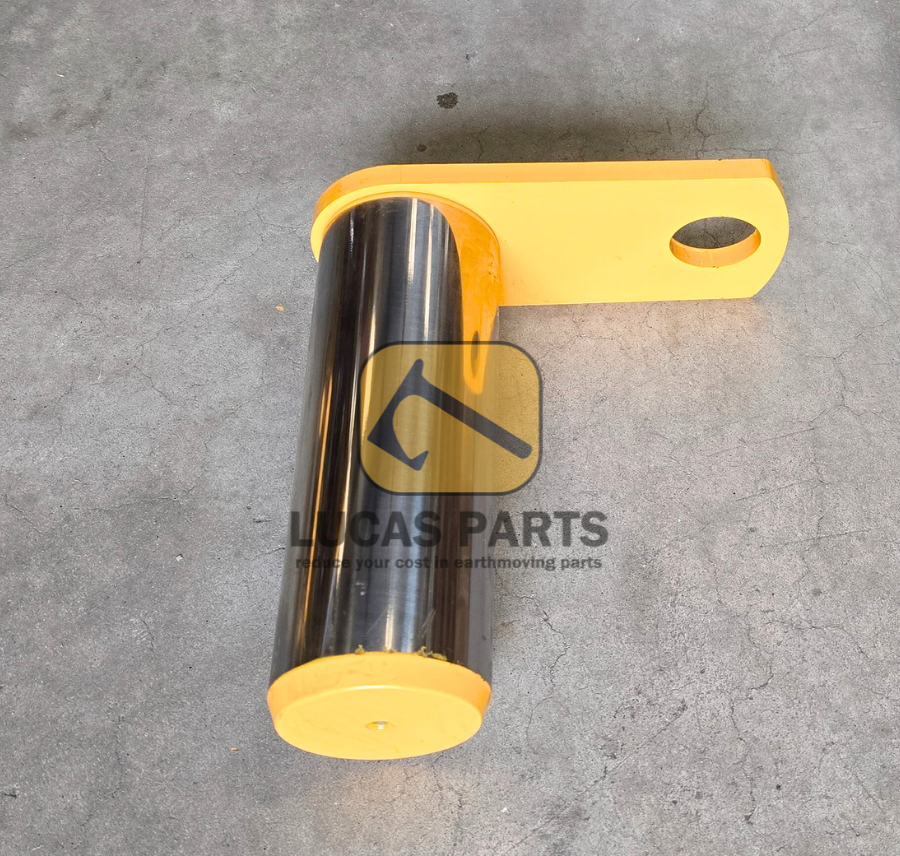

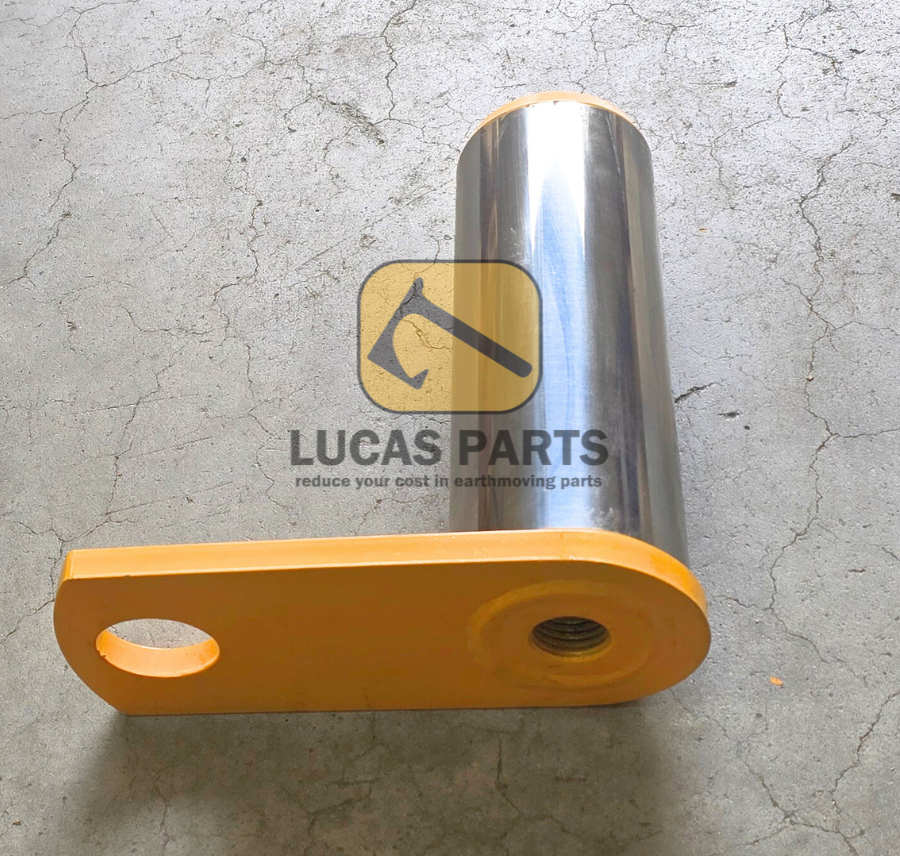

Excavator Pin 90x270mm IDxTL Bucket Ram Top Pin (P7) CAT345B 345C 345D 349D 350 365B PN 141-3550 1413550

No Grease Hole Solid Pin

$290.00



Description

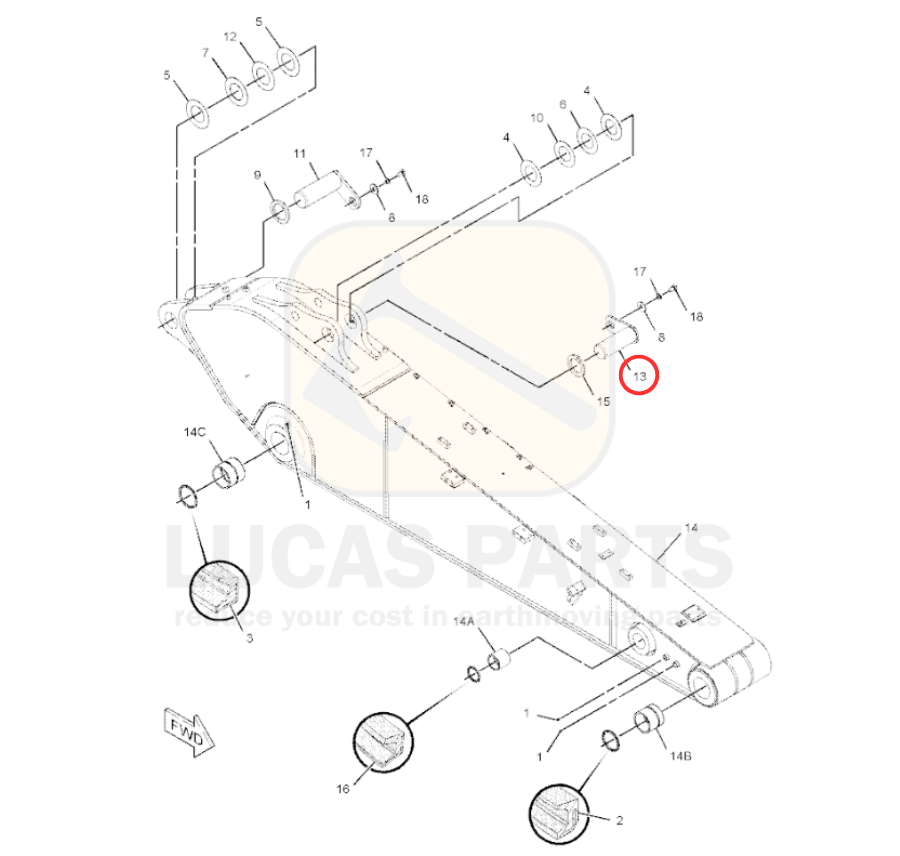

Pin-and-Bush-Location-Diagram



Lucas Parts stock a range of pins and bushes to fit mini excavators from 0.75 ton up to 40 ton.


Our pins are induction hardened for maximum wear resistance. Made from high carbon steel equal to 40Cr or 45 # steel. Quenching depth from 1.5-2.8mm and hardness is HRC 52-55.

Specifications

45# type steel is the high quality carbon structural steel, carbon content is 0.42-0.50%, with 610 Mpa tensile strength , and yield point is 376 Mpa; it is widely used in machinery parts.









SKU P90X270RENG
Brand Lucas Parts
Shipping Weight 17.0000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
Unit Of Measure ea
