SKU: HCAA20103

Arm Cylinder Assembly ZX230 ZX240

$6,800.00
VIP Unlock member-only pricing — Sign in or Join VIP Club
VIP Club Rewards. You could earn 6,800 Points.



Description





Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke



Pin-and-Bush-Location-Diagram

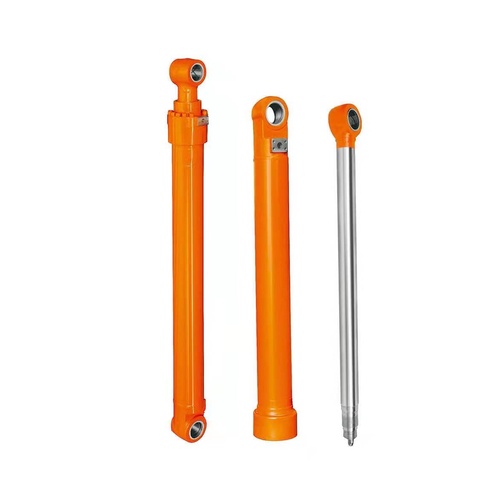

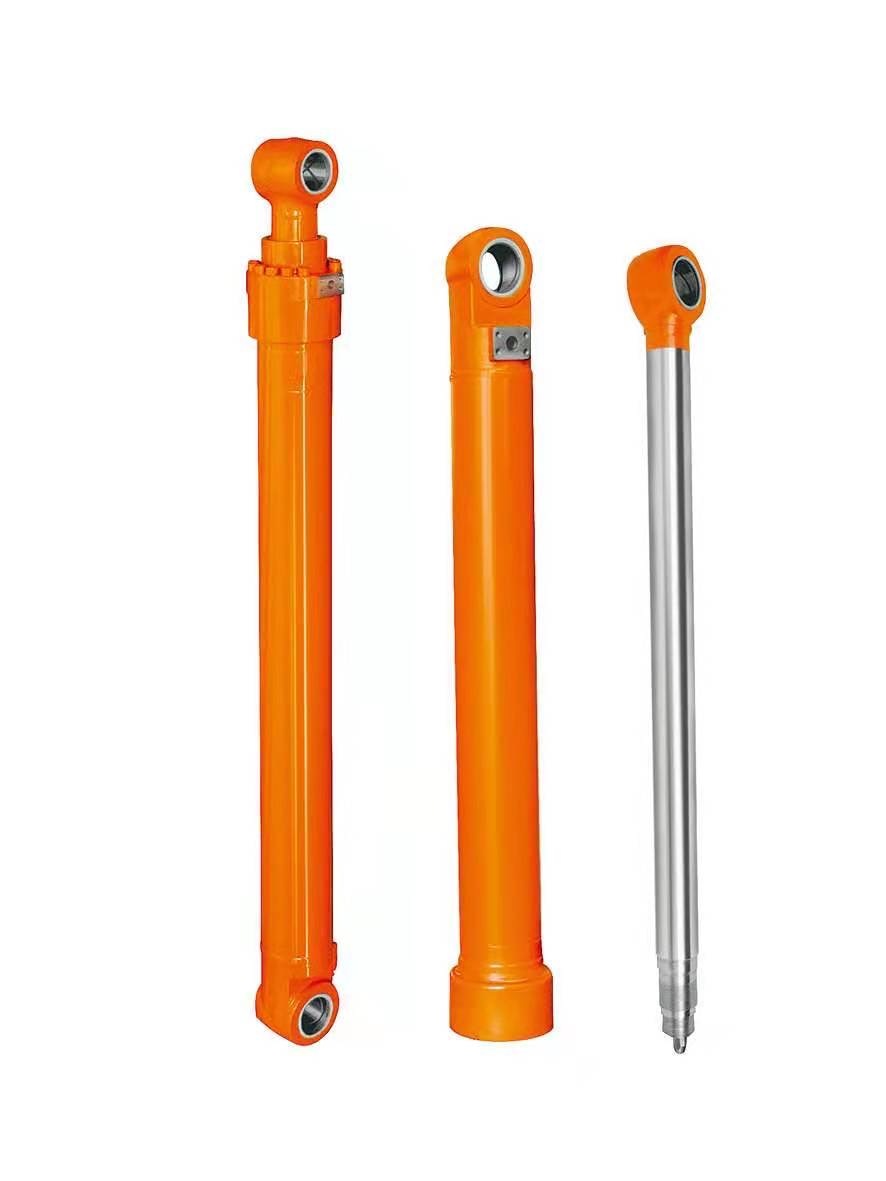

Hitachi ZX230, ZX240 Arm / Stick Cylinder Assembly – Complete Replacement Unit

Restore full digging power and precise arm control on your Hitachi ZX230, ZX240 with this complete arm (stick) cylinder assembly. Built to match the original OEM dimensions, it comes complete with barrel, rod, piston, gland and seals already fitted.

If the arm hesitates when you crowd in, drifts while holding a load, or the rod is pitted and leaking past fresh seals, a complete replacement is usually the quickest fix. Fitting a new assembly is usually faster and more cost-effective than stripping, honing and re-sealing the old one. Machines this size are typically on hourly hire or production work, where a cylinder failure means a truck fleet sitting idle.

At a Glance

Our SKU HCAA20103
Part Type Arm / Stick Hydraulic Cylinder Assembly
Suits Hitachi ZX230, ZX240 Excavator
Supplied As Complete assembly – barrel, rod, piston, gland & seals fitted
Condition Brand New, Aftermarket (OEM Spec)
Warranty Backed by Lucas Parts Quality Guarantee

Why Order From Us

  • Quality Tested – Every cylinder pressure-checked before it ships
  • Ready to Fit – Complete assembly – no sourcing seals or rebuilding
  • Fitment Checked – Send us your serial number and we confirm before dispatch
  • Expert Support – Not sure about fitment? Our team knows excavators

Fitment Note: Please confirm your machine model and serial number range before ordering, as cylinder specifications can vary between production years. Contact us with your serial number and we'll confirm compatibility.

Specifications

SKU HCAA20103
Brand Hitachi
Shipping Weight 280.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 2.650m
Shipping Cubic 0.324625000m3
Unit Of Measure ea
