SKU: HCAA06106

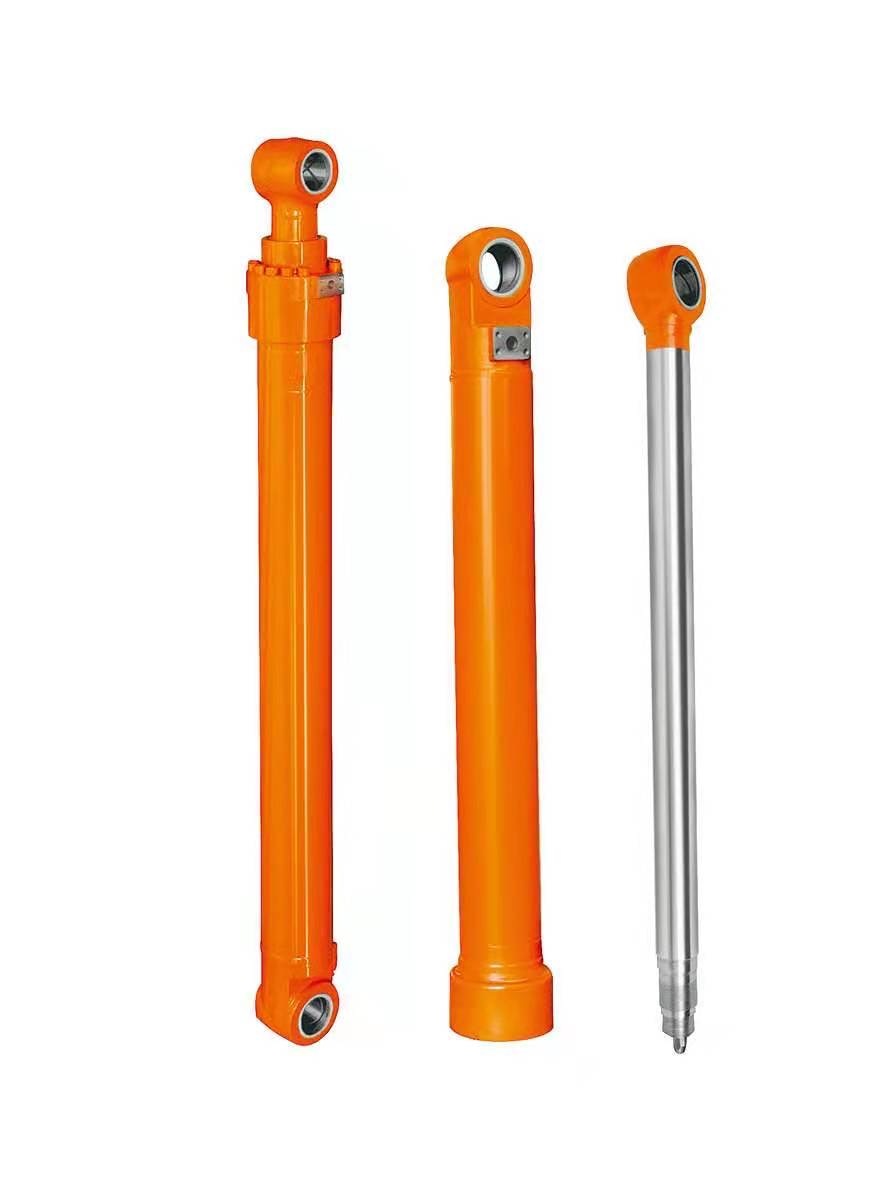

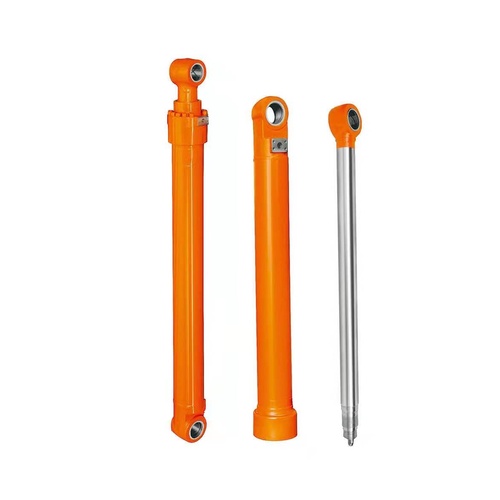

Arm/Stick Cylinder Assembly Takeuchi TB260

$4,500.00
VIP Unlock member-only pricing — Sign in or Join VIP Club
VIP Club Rewards. You could earn 4,500 Points.



Description





Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke



Pin-and-Bush-Location-Diagram

Arm / Stick Cylinder Assembly for Takeuchi TB260 Mini Excavator

Restore full digging power and precise arm control on your Takeuchi TB260 with this complete arm (stick) cylinder assembly. Supplied as a ready-to-fit unit — barrel, rod, piston, gland and seals — it's built to OEM specifications for a direct bolt-on replacement with no rebuilding required.

A worn or leaking arm cylinder shows up as slow or drifting stick movement, oil weeping at the gland, or a scored rod that keeps chewing through seals. Rather than losing days to a rebuild, swap in a complete new assembly and get the machine straight back to work.

Product Details

Our SKU HCAA06106
Part Type Arm / Stick Hydraulic Cylinder Assembly
Suits Takeuchi TB260 Mini Excavator
Supplied As Complete assembly – barrel, rod, piston, gland & seals fitted
Condition Brand New, Aftermarket (OEM Spec)
Warranty Backed by Lucas Parts Quality Guarantee

Why Buy From Lucas Parts

  • Australia-Wide Shipping – Fast dispatch from our Melbourne warehouse
  • Quality Tested – Every cylinder pressure-checked before it ships
  • Expert Support – Not sure about fitment? Our team knows excavators
  • Trusted Supplier – Specialists in aftermarket parts for Takeuchi, Kubota, Komatsu, CAT and more

Fitment Note: Please confirm your machine model and serial number range before ordering, as cylinder specifications can vary between production years. Contact us with your serial number and we'll confirm compatibility.

Specifications

SKU HCAA06106
Brand Takeuchi
Shipping Weight 78.0000kg
Shipping Width 0.400m
Shipping Height 0.401m
Shipping Length 1.400m
Shipping Cubic 0.224560000m3
Unit Of Measure ea

Reviews

Be The First To Review This Product!

Help other LUCAS PARTS users shop smarter by writing reviews for products you have purchased.

Write a product review
