SKU: HCAL03101

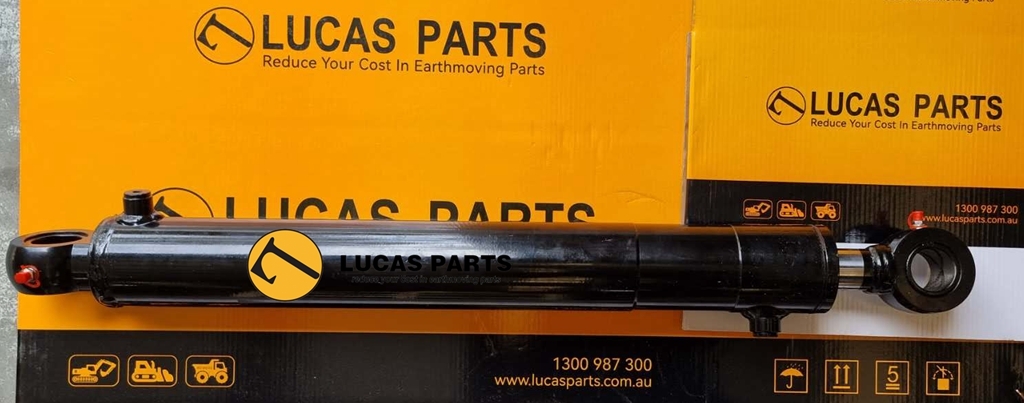

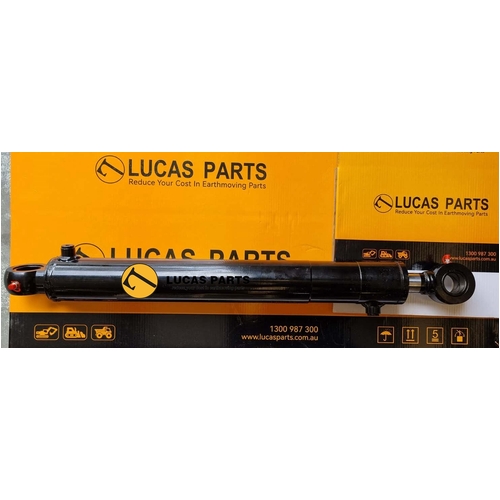

Boom/Lift Cylinder Assembly VIO17

Boom Cylinder Assy

$1,900.00
VIP Unlock member-only pricing — Sign in or Join VIP Club
VIP Club Rewards. You could earn 1,900 Points.



Description

Complete Hydraulic Cylinder Arrangement with Tube and Rod Assemblies.



Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke



Pin-and-Bush-Location-Diagram

Yanmar VIO17 Mini Excavator Boom / Lift Cylinder – Ready-to-Fit Assembly

Restore full lifting capacity and smooth boom control on your Yanmar VIO17 with this complete boom (lift) cylinder assembly. Everything is supplied assembled — barrel, chromed rod, piston, gland and seals — so installation is a simple swap.

Internal seal bypass in a boom cylinder cuts lift capacity and makes trenching to grade difficult, while external leaks waste oil and attract dirt into the circuit. Replacing the whole cylinder means no chasing parts, no machining delays and no guesswork about what else is worn inside. Small machines get worked hard in confined spaces, often by multiple operators, and the cylinders take the brunt of it.

Product Details

Our SKU HCAL03101
Part Type Boom / Lift Hydraulic Cylinder Assembly
Suits Yanmar VIO17 Mini Excavator
Supplied As Complete assembly – barrel, rod, piston, gland & seals fitted
Condition Brand New, Aftermarket (OEM Spec)
Warranty Backed by Lucas Parts Quality Guarantee

Why Choose Lucas Parts

  • Fitment Checked – Send us your serial number and we confirm before dispatch
  • Expert Support – Not sure about fitment? Our team knows excavators
  • Local Stock – Held in Melbourne, so there is no long overseas wait
  • Australia-Wide Shipping – Fast dispatch from our Melbourne warehouse

Fitment Note: Before ordering, please compare your existing cylinder's closed length, stroke and pin diameters with the drawing above, or send us your machine serial number and we'll confirm it for you.

Specifications

SKU HCAL03101
Brand Yanmar
Shipping Weight 20.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.600m
Shipping Cubic 0.054000000m3
Unit Of Measure ea

Reviews

Be The First To Review This Product!

Help other LUCAS PARTS users shop smarter by writing reviews for products you have purchased.

Write a product review
