SKU: HCAA40102
Arm/Stick Cylinder Assembly DX480 DX500 DX520 PN 400305-00428C
$13,500.00
VIP Club Rewards. You could earn
13,500
Points.
VIP Club Rewards Program
-
Register now to become a member and enjoy exclusive member pricing at VIP Club.
-
As a VIP member, you earn 1 point for every $1 you spend. Every 100 points is worth $1 off any future order.
To see your reward points and use them as a discount, please sign in.
Sold Out
Make an Enquiry
Description

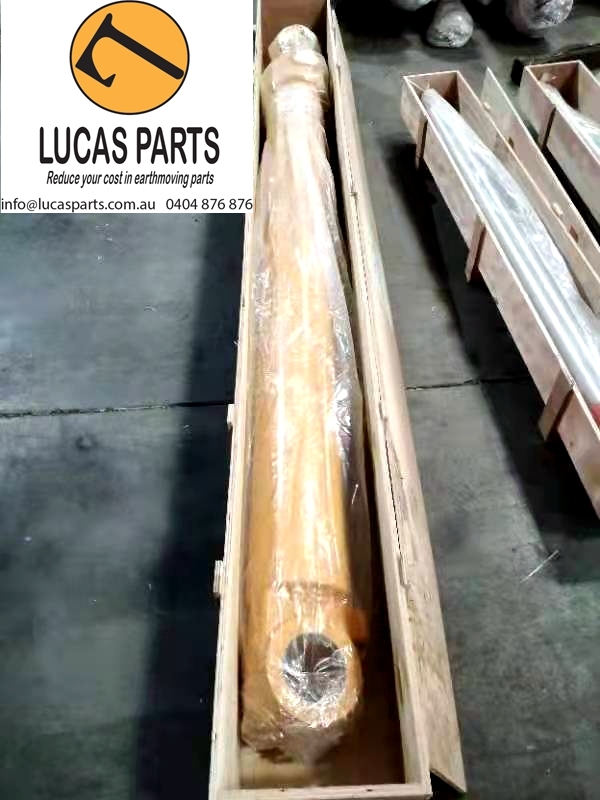

Arm / Stick Hydraulic Cylinder to Suit Doosan DX480, DX500, DX520 Excavator
Replace a tired or leaking arm cylinder on your Doosan DX480, DX500, DX520 in one go with this complete arm (dipper) cylinder assembly. Supplied as a ready-to-fit unit — barrel, rod, piston, gland and seals — it's built to OEM specifications for a direct bolt-on replacement with no rebuilding required. Cross-references OEM part number 400305-00428C.
Typical signs it is time for a new arm cylinder: the stick creeps out under load, crowd force drops off when digging, and oil keeps appearing around the rod gland. Fitting a new assembly is usually faster and more cost-effective than stripping, honing and re-sealing the old one. Heavy 45–50 tonne excavators are built for quarry, mining and mass excavation duty, where cylinders face extreme pressures and constant cycling.
Key Details
| Our SKU | HCAA40102 |
| OEM Reference | 400305-00428C |
| Part Type | Arm / Stick Hydraulic Cylinder Assembly |
| Suits | Doosan DX480, DX500, DX520 Excavator |

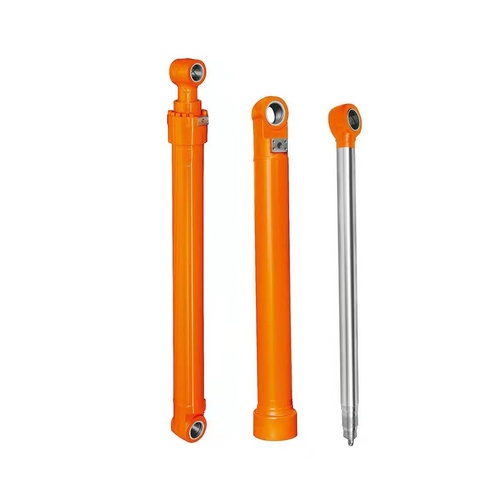

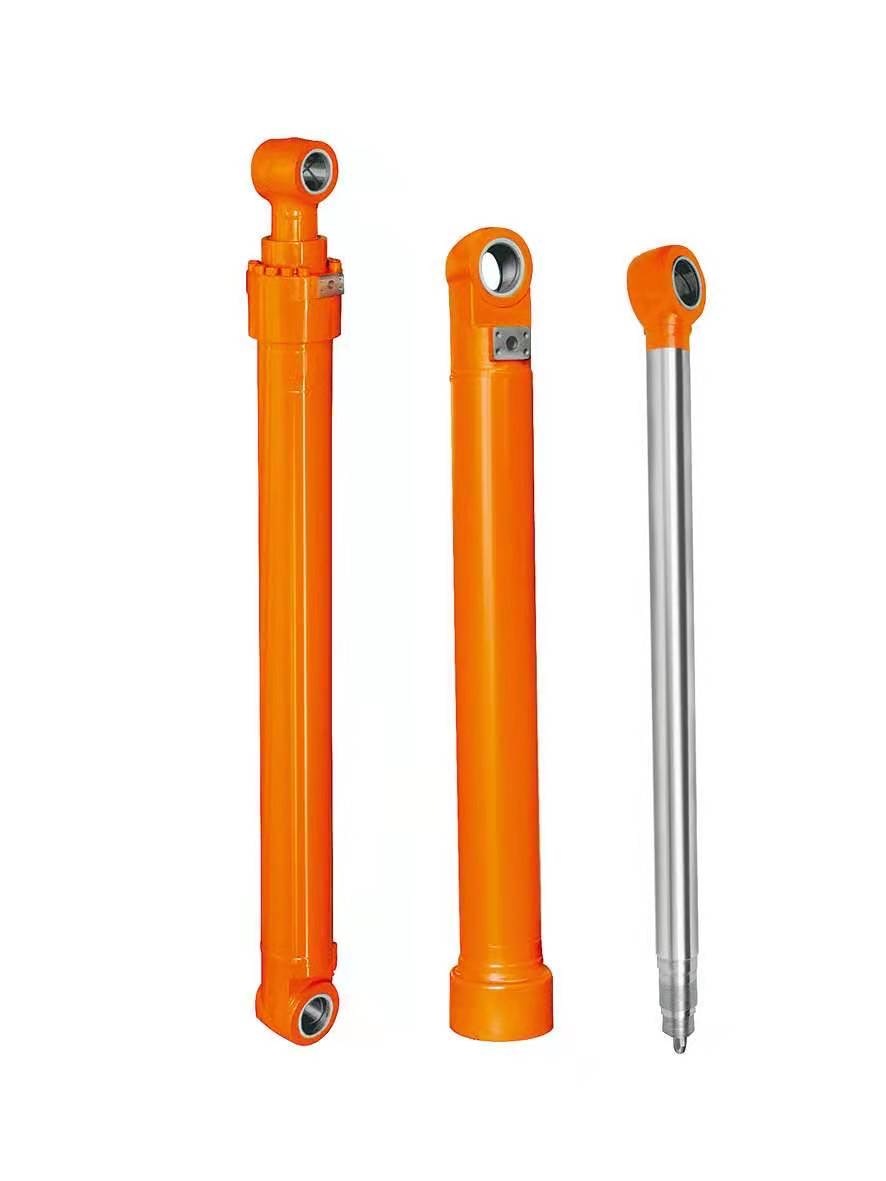

| Supplied As | Complete assembly – barrel, rod, piston, gland & seals fitted |
| Condition | Brand New, Aftermarket (OEM Spec) |
| Warranty | Backed by Lucas Parts Quality Guarantee |
Why Buy From Lucas Parts
- Expert Support – Not sure about fitment? Our team knows excavators
- Local Stock – Held in Melbourne, so there is no long overseas wait
- Australia-Wide Shipping – Fast dispatch from our Melbourne warehouse
- Trusted Supplier – Specialists in genuine & aftermarket parts for Hitachi, Kobelco, Komatsu, Volvo and more
Fitment Note: Cylinder dimensions can change between serial ranges and machine options. Send us your serial number or measurements (closed length, stroke, pin sizes) and we'll check fitment before dispatch.
Specifications
| SKU | HCAA40102 |
| Brand | Volvo |
| Shipping Weight | 450.0000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.350m |
| Shipping Length | 2.650m |
| Shipping Cubic | 0.324625000m3 |
| Unit Of Measure | ea |
