SKU: HCAB10105

Bucket Cylinder Assembly EX120-2 EX120-5 EX120-6 ZX135

$4,400.00
VIP Unlock member-only pricing — Sign in or Join VIP Club
VIP Club Rewards. You could earn 4,400 Points.



Description





Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke



Pin-and-Bush-Location-Diagram

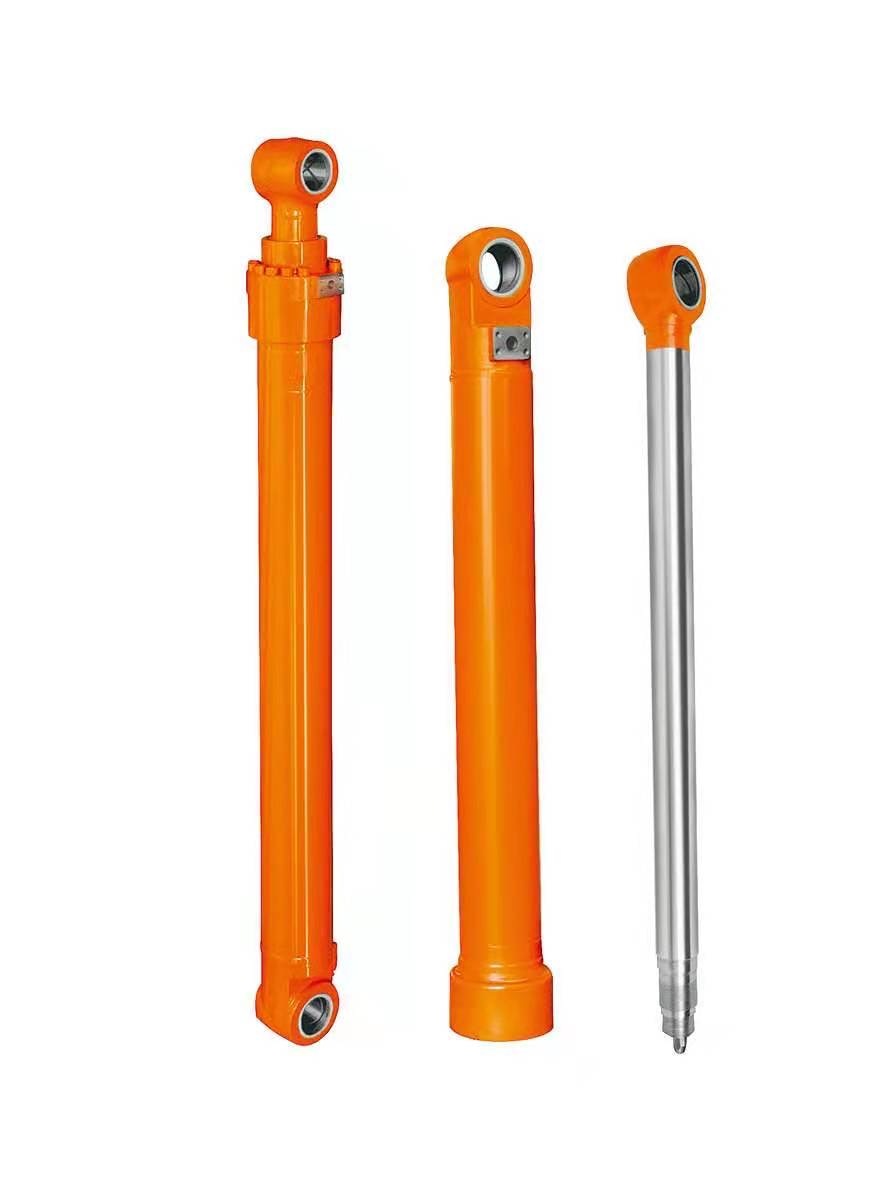

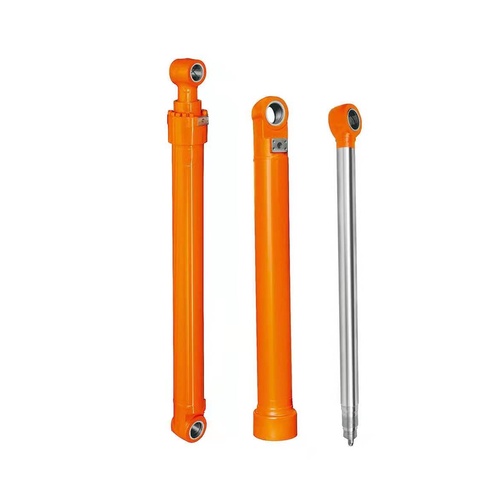

Hitachi EX120-2, EX120-5, EX120-6, ZX135 Bucket Cylinder Assembly – Complete Replacement Unit

Get full breakout force back on your Hitachi EX120-2, EX120-5, EX120-6, ZX135 with this complete bucket cylinder assembly. Everything is supplied assembled — barrel, chromed rod, piston, gland and seals — so installation is a simple swap.

Lost breakout force, a bucket that will not hold its position, and oil leaking down the rod are the classic signs of a worn bucket cylinder. Skip the rebuild queue — fit a complete cylinder and keep the machine earning. These machines are commonly run on council, pipeline and subdivision work where a reliable front end is non-negotiable.

At a Glance

Our SKU HCAB10105
Part Type Bucket Hydraulic Cylinder Assembly
Suits Hitachi EX120-2, EX120-5, EX120-6, ZX135 Excavator
Supplied As Complete assembly – barrel, rod, piston, gland & seals fitted
Condition Brand New, Aftermarket (OEM Spec)
Warranty Backed by Lucas Parts Quality Guarantee

Why Order From Us

  • Quality Tested – Every cylinder pressure-checked before it ships
  • Ready to Fit – Complete assembly – no sourcing seals or rebuilding
  • Fitment Checked – Send us your serial number and we confirm before dispatch
  • Expert Support – Not sure about fitment? Our team knows excavators

Fitment Note: Please confirm your machine model and serial number range before ordering, as cylinder specifications can vary between production years. Contact us with your serial number and we'll confirm compatibility.

Specifications

SKU HCAB10105
Brand Hitachi
Shipping Weight 170.0000kg
Shipping Width 0.400m
Shipping Height 0.401m
Shipping Length 1.500m
Shipping Cubic 0.240600000m3
Unit Of Measure ea
