SKU: HCAB20104

Bucket Cylinder Assembly ZX230 ZX240-3

$6,400.00
VIP Unlock member-only pricing — Sign in or Join VIP Club
VIP Club Rewards. You could earn 6,400 Points.



Komatsu Part Number:707-01-0CH30

Description





Hydraulic Cylinder Measurement Guide - How to Measure Tube OD, Rod Diameter, Pin Bore and Stroke



Pin-and-Bush-Location-Diagram

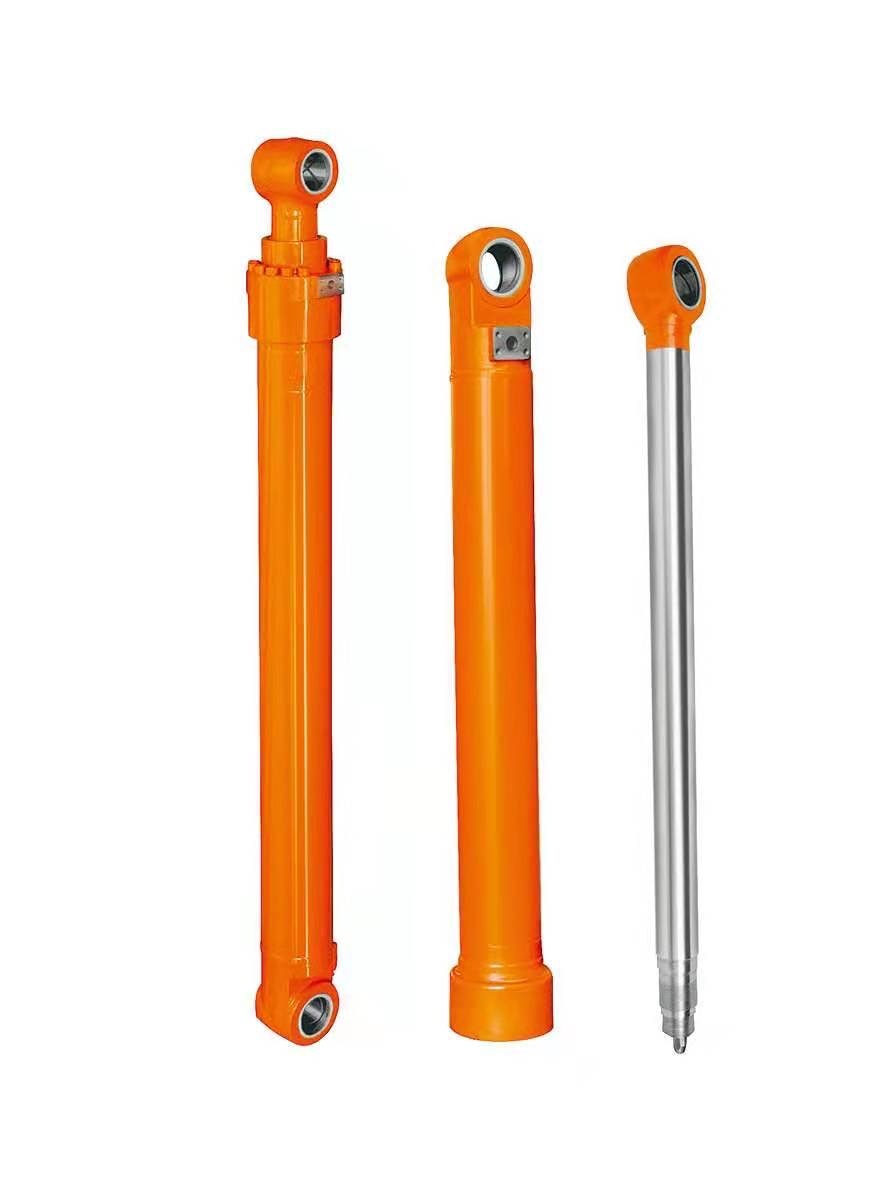

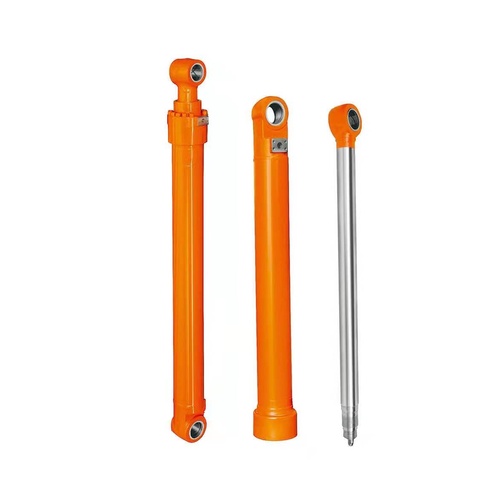

Hitachi ZX230, ZX240-3 Bucket Cylinder Assembly – Complete Replacement Unit

Keep your Hitachi ZX230, ZX240-3 filling the bucket and holding its load with this complete bucket cylinder assembly. Everything is supplied assembled — barrel, chromed rod, piston, gland and seals — so installation is a simple swap.

Bucket cylinders take the most punishment on any excavator — rock strikes, prying and constant curling lead to bent rods, torn seals and oil sprayed over the linkage. Replacing the whole cylinder means no chasing parts, no machining delays and no guesswork about what else is worn inside. For operators running bulk earthworks, demolition or quarry loading, a healthy front-end cylinder keeps cycle times where they should be.

At a Glance

Our SKU HCAB20104
Part Type Bucket Hydraulic Cylinder Assembly
Suits Hitachi ZX230, ZX240-3 Excavator
Supplied As Complete assembly – barrel, rod, piston, gland & seals fitted
Condition Brand New, Aftermarket (OEM Spec)
Warranty Backed by Lucas Parts Quality Guarantee

Why Order From Us

  • Quality Tested – Every cylinder pressure-checked before it ships
  • Ready to Fit – Complete assembly – no sourcing seals or rebuilding
  • Fitment Checked – Send us your serial number and we confirm before dispatch
  • Expert Support – Not sure about fitment? Our team knows excavators

Fitment Note: Before ordering, please compare your existing cylinder's closed length, stroke and pin diameters with the drawing above, or send us your machine serial number and we'll confirm it for you.

Specifications

SKU HCAB20104
Brand Hitachi
Shipping Weight 220.0000kg
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 2.000m
Shipping Cubic 0.245000000m3
Unit Of Measure ea
